Engineering Wire Mesh Belts for Heat Treatment and Oven Lines
Wire mesh belts enable continuous thermal processing at temperatures up to 1,150°C. Learn how to select alloys, manage thermal expansion, and optimize oven airflow.

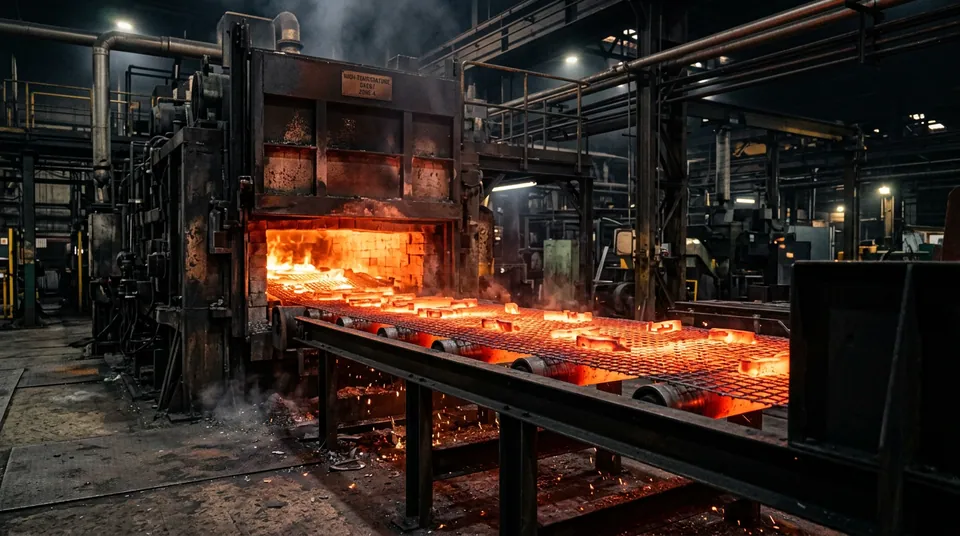

For high-temperature industrial applications exceeding 200°C (392°F), wire mesh belts are the industry standard, capable of operating at sustained temperatures up to 1,150°C (2,100°F) while maintaining structural integrity. These belts provide the necessary open-area ratio—often ranging from 40% to 85%—to facilitate uniform heat distribution and critical airflow in oven and heat treatment lines.
The Engineering Logic of Wire Mesh Belts
In thermal processing, the conveyor medium must solve three simultaneous engineering challenges: thermal expansion, structural load capacity at high temperatures, and airflow permeability. Unlike plastic modular belts, which typically fail above 100°C, or solid rubber belts that would combust, wire mesh belts utilize metallurgical properties of stainless steel and high-nickel alloys to remain stable under extreme stress.
The selection of a wire mesh belt is dictated by the NEMA standards for materials and the specific thermal cycle of the application. In heat treatment, these cycles involve rapid heating followed by controlled cooling or quenching. The mesh structure allows the heat-treating atmosphere (whether carburizing, nitriding, or neutral) to surround the part completely, ensuring metallurgical uniformity.
Material Selection and Temperature Thresholds
The performance of a wire mesh belt is primary a function of its alloy composition. Engineers must select materials that resist oxidation and "scaling" at specific temperature thresholds:
| Material Grade | Max Operating Temp | Primary Benefit | Common Application |
|---|---|---|---|
| AISI 304 | 400°C (750°F) | Corrosion resistance | Food baking, drying |
| AISI 314 | 1,050°C (1,922°F) | High oxidation resistance | Glass annealing, brazing |
| Inconel 601 | 1,150°C (2,100°F) | Creep strength | Sintering, heavy heat treat |
| Chrome-Aluminum | 1,250°C (2,282°F) | Extreme heat | Technical ceramics |
Key Weave Patterns in Thermal Processing
The geometry of the weave determines the belt’s strength, tracking stability, and the size of products it can carry. In modern oven lines, three primary architectures dominate:
1. Balanced Weave Belts
This is the most widely used construction for general-purpose heat treatment. It consists of alternating left and right-hand spiral wires joined by a crimped connecting rod. This "balanced" configuration prevents the belt from pulling to one side, a critical feature for long oven runs where thermal expansion complicates belt tracking. For designers integrating these into larger systems, Easy Conveyors provides the structural framework and modular components necessary to transition products from wire mesh sections to standard handling modules.
2. Compound Balanced Weave (CB)
For small fasteners or delicate components that require a flat carrying surface, the CB weave uses multiple spirals and cross-rods. This creates a very tight, dense mesh. While it offers excellent support, the reduced open area means heat-up times are longer, requiring more precise tuning of the furnace's VFD and heating elements.
3. Rod Reinforced Weave
Often found in heavy-duty sintering furnaces, this weave adds straight rods through the spiral intersections. This increases the tensile strength of the belt significantly, allowing for high load-per-square-foot ratios at temperatures where standard steel would begin to stretch or "creep."
Thermal Expansion and Belt Tensioning
One of the most complex aspects of operating 1,000°C+ oven lines is managing the physical expansion of the metal. A 30-meter stainless steel belt can expand by several centimeters as it reaches soak temperature.
Designers must utilize gravity take-up units or pneumatic tensioning systems. Fixed-center drives are generally avoided in heat treatment because they cannot compensate for the slack created by thermal expansion. If the tension is too high, the belt undergoes "creep deformation"—a slow, permanent stretching that eventually leads to fatigue failure. Conversely, too little tension leads to surging and poor belt tracking. Following ISO 9001 quality processes during the tensioning and commissioning phase ensures the longevity of the drive motor and the mesh.
Easy Conveyors stocks the conveyor components discussed here — ready to ship across Europe.
Factors Influencing Belt Life in Ovens
The "service life" of a wire mesh belt in an oven is rarely defined by wear; it is defined by thermal fatigue and chemical attack.
- Atmosphere Contamination: In brazing or sintering, the belt is exposed to flux or reducing atmospheres. If the atmosphere is not correctly balanced, it can lead to "green rot" (oxidation of the chromium) in high-nickel alloys.
- Thermal Cycling: The more frequently a belt moves from 1,000°C back to ambient, the faster it will fail due to internal stress. Maintaining a constant temperature or "idling" the furnace at a reduced heat during downtime often extends belt life compared to full shutdowns.
- Loading Patterns: Uneven loading across the width of the belt causes non-uniform stress on the cross-rods, leading to "bowing" or "cambering," which makes the belt impossible to track.
Integration with Automation
Modern heat treatment lines are increasingly integrated with robotic loading units. This requires the belt to have indexed movement or extremely consistent speeds. Utilizing SEW-Eurodrive gearmotors with high-resolution encoders allows for the precision required to sync the wire mesh belt with robotic pick-and-place systems, ensuring parts are placed in the optimal "heat zone" of the furnace.
Maintenance and Inspections
For high-temperature operations, maintenance is a predictive science. Technicians should monitor:
- Belt Width Reduction: A "necking down" of the belt width is a primary indicator of excessive tension or creep.
- Edge Condition: Frayed or cracked edges suggest the belt is rubbing against the furnace liners or "hunting" due to tracking issues.
- Discoloration: While some oxidation is normal, heavy scaling can insulate the belt, reducing its thermal efficiency and increasing the energy required by the oven.
In many food grade applications, wire mesh belts must also comply with FDA regulations (CFR 21) regarding cleanability. In these cases, the "open-weave" nature of the mesh is a hygiene advantage, allowing high-pressure steam or wash-down systems to penetrate the belt entirely, preventing bacterial harborage in the joints.
Future Trends: High-Efficiency Thermal Lines
The industry is moving toward more energy-efficient furnaces, which places new demands on belt manufacturers. Low-mass belts are being developed to reduce the "parasitic heat load"—the energy wasted just heating the belt itself rather than the product. By using higher-strength alloys in thinner wire gauges, manufacturers can achieve the same load ratings with 20% less metal mass, leading to significant energy savings and faster cooling cycles.
Furthermore, the implementation of "smart belts" equipped with integrated sensors or thermal-resistant RFID tags is beginning to allow real-time tracking of individual components through the heat treatment cycle, providing a full digital twin of the metallurgical process.
Frequently Asked Questions
What is the best material for high-temperature conveyor belts?
For temperatures up to 400°C, AISI 304 or 316 stainless is common. For 400°C-1,050°C, AISI 314 or 310 are used. For extreme heat above 1,100°C, high-nickel alloys like Inconel 601 are required to prevent oxidation and creep.
Why is balanced weave the standard for heat treatment?
Balanced weave is the most common because it utilizes alternating spirals to counteract lateral movement, ensuring the belt travels straight through long furnace tunnels despite thermal expansion.
How do you handle belt expansion in a 1,000°C oven?
Thermal expansion is managed using gravity take-up towers or weighted catenary sections. These systems allow the belt to physically lengthen as it heats up without increasing the internal tension to a point of mechanical failure.
What are the most common causes of wire mesh belt failure?
Most failures are caused by 'creep' (permanent stretching from too much tension), thermal fatigue from frequent cooling/heating cycles, or poor tracking that causes the edges to rub against the furnace structure.
Can wire mesh belts be used for food-grade washdown applications?
Yes, wire mesh belts have a high open-area ratio (usually 60%+) which allows for extremely efficient drainage and airflow, making them ideal for frying, blanching, and high-heat sterilization.
