Side Guides, Transfer Plates and End Rollers Explained: Optimizing Transitions
Master the essentials of conveyor side guides, transfer plates, and end rollers. Learn how to optimize product transitions and minimize downtime in modular systems.
Side guides, transfer plates, and end rollers are the specialized peripheral components that manage the physical interface between conveyor sections and govern product orientation during high-speed transport. While the primary motor and belt handle long-distance movement, these "finishing" components ensure that transitions occur without product damage, jams, or loss of throughput.
In modern modular systems, these components are no longer static rails or simple rollers; they are precision-engineered interfaces designed to reduce friction, eliminate "dead spots" in product flow, and maintain the hygiene standards required by FDA and EU 1935/2004 regulations.
The Role of Side Guides in Product Stability
Side guides (also known as lateral guides or wear strips) serve two primary functions: containment and alignment. Without proper side guiding, centrifugal forces at curves or vibrations during high-speed travel would cause products to migrate off the belt or lose their position for downstream processes like labeling or scanning.
Material Selection: POM vs. HDPE vs. Stainless Steel
The choice of material for side guides depends largely on the coefficient of friction ($\mu$) and the wash-down requirements of the facility.
- HDPE (High-Density Polyethylene): The industry standard for general packaging. It offers a low coefficient of friction $(\mu \approx 0.20)$ and is highly resistant to abrasion.
- POM (Polyoxymethylene/Acetal): Often used in "low-back-pressure" applications where containers must accumulate. POM is stiffer than HDPE and resists deformation under high thermal loads.
- Stainless Steel with Plastic Inserts: Used in heavy-duty automotive or glass-handling lines where structural rigidity is paramount, but the contact surface must remain non-marring.
Transfer Plates: Bridging the Gap
A transfer plate is a stationary or "active" bridge installed between two conveyor modules or between a conveyor and a processing machine (like a filler or packer). Its primary goal is to close the "gap" created by the radius of the conveyor’s end sprocket or drum motor.
Static vs. Roller Transfer Plates
In the engineering of high-speed lines, "dead plates" (static transfer plates) are increasingly being replaced by roller transfers.
- Static Plates: These are typically CNC-machined from low-friction plastic. They work best for products with a large footprint that can "bridge" the gap using their own momentum. Use these for stable, flat-bottomed crates.

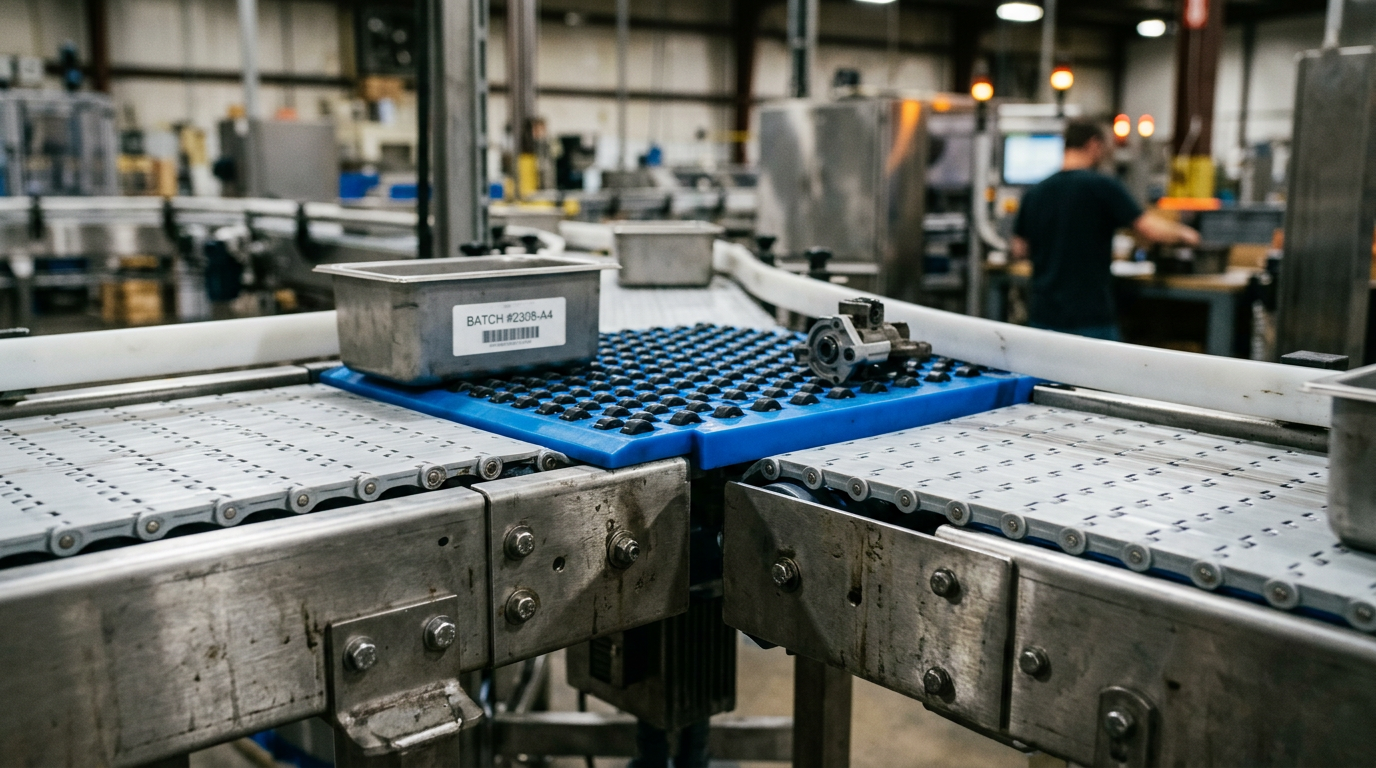

- Roller Transfers: These incorporate rows of miniature rollers (often 10mm to 20mm in diameter). They are essential for small stable items, such as pharmaceutical vials or energy drink cans, which would otherwise tip over or stall on a static plate.
When designing these interfaces, Easy Conveyors provides modular transition solutions that minimize the vertical drop between sections, ensuring that even lightweight primary packaging moves seamlessly across the line.
End Rollers and Nose Bars: Achieving Small Radii
End rollers and nose bars are the components at the terminal points of a conveyor frame that facilitate the return of the belt. In modular belt systems, the diameter of the end roller determines the "node-to-node" gap between two conveyors.
- Standard End Rollers: Typically 50mm to 100mm in diameter, used for heavy loads where belt tension is high.
- Nose Bars (Knife Edges): These are small-diameter rollers or fixed radials (often 6mm to 15mm). They are critical for "tight transfers" of small products like chocolates, electronic components, or bakery items.
Comparison of Transfer Component Performance
| Feature | Static Dead Plate | Roller Transfer Plate | Nose Bar (Knife Edge) |
|---|---|---|---|
| Minimum Product Size | > 150mm | > 30mm | > 10mm |
| Friction Level | High | Very Low | Low |
| Maintenance | Zero (Wear part) | Periodic Cleaning | Bearing Inspection |
| Hygiene Rating | Excellent (Solid) | Moderate (Crevices) | Good (Sealed) |
| Typical Material | UHMW-PE / Stainless | POM / Stainless | POM / Hardened Steel |
Easy Conveyors stocks the conveyor components discussed here — ready to ship across Europe.
Engineering Design Trade-offs
When specifying these components, engineers must balance throughput against product stability.
The "Pitch" Problem
In modular conveyors, the pitch of the belt (e.g., 12.5mm vs 25mm) dictates the minimum sprocket diameter. A larger pitch requires a larger sprocket, which creates a larger gap at the transfer point. To solve this without using a large transfer plate, designers often employ an "offset" or "staggered" layout where one conveyor sits slightly higher than the next, allowing the product to "waterfall" onto the following section. However, for fragile goods, a level transfer using a precision-machined transfer plate is mandatory.
Thermal Expansion Considerations
In food processing environments (e.g., cooling tunnels or industrial ovens), side guides and transfer plates must account for thermal expansion. HDPE has a high coefficient of linear thermal expansion. If guides are bolted too tightly over long distances, they will "snake" or buckle. Use "floating" mounts or expansion slots to allow for movement of 2-3mm per meter in high-temperature zones.
Troubleshooting Common Interface Failures
- Product "Shingling": When products overlap at the transfer point. This is usually caused by a speed mismatch between the two belts or a transfer plate that is set too low.
- Side Guide Vibration: If side guides are too thin or lack enough support brackets (standard spacing is 500mm to 800mm), they can vibrate, creating noise and causing "micro-scratches" on delicate packaging.
- Bearing Seizure in Roller Transfers: In wash-down environments, the small bearings in roller plates can seize if not properly specified with stainless steel balls or ceramic inserts.
Future Trends: Adjustable and Smart Guiding
The rise of "batch-of-one" manufacturing is driving the adoption of automated side guides. These systems use small actuators to adjust the width of the conveyor path via the PLC, eliminating manual changeover time between different SKU sizes. Furthermore, smart transfer plates with integrated sensors are being used to detect "downed" products at the transition point, or to measure product flow rates in real-time.
By focusing on the precision of side guides, the smoothness of transfer plates, and the radius of end rollers, facilities can significantly reduce their Total Cost of Ownership (TCO) through reduced product loss and higher overall equipment effectiveness (OEE). For those looking to optimize these specific interfaces, focusing on hygienic wash-down design and drum motor selection for the drive units will ensure the entire system operates at peak efficiency.
Frequently Asked Questions
How high should a transfer plate be set relative to the belt?
Static transfer plates should be set approximately 0.5mm to 1.0mm higher than the receiving belt to prevent the product from catching on the leading edge of the downstream conveyor.
When should I use a nose bar instead of a standard end roller?
A nose bar or knife edge is required when the product diameter or length is less than 50mm, as standard sprockets create a gap that could cause small items to tip or fall into the frame.
Is POM better than HDPE for side guides?
While HDPE is cheaper, POM is generally preferred for side guides in high-speed applications due to its higher stiffness, lower moisture absorption, and better dimensional stability under heat.
What is the recommended spacing for side guide support brackets?
Standard practice for industrial conveyors is to place support brackets every 500mm to 750mm. For high-speed lines or heavy lateral pressure, reduce this to 400mm.
How do roller transfer plates prevent product damage?
Roller transfers reduce friction significantly, which prevents 'back-pressure' issues where products bunch up and crush each other, especially common in glass bottling and delicate packaging.
