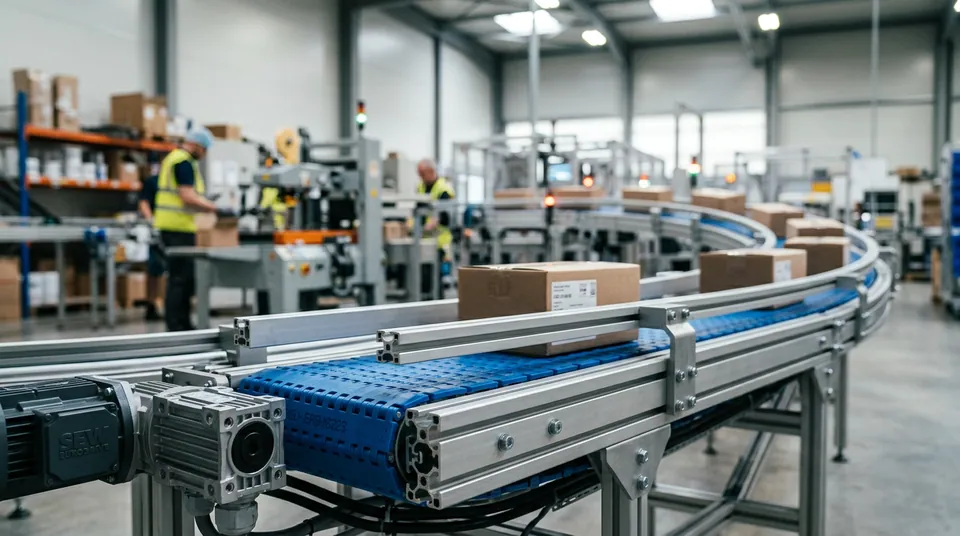

Optimizing Throughput: Aluminium Profile Conveyor Frames for Line Balancing

In modern high-throughput manufacturing, aluminium profile conveyor frames provide a lightweight yet rigid structural foundation that allows for a 30% faster reconfiguration of production lines compared to welded steel alternatives. These modular systems serve as the mechanical backbone for line balancing, enabling engineers to rapidly adjust buffer lengths, integrate cross-transfers, and redistribute workstation densities to eliminate bottlenecks and optimize cycle times across the factory floor.

The Role of Aluminium Profiles in Line Balancing

Line balancing is the process of distributing tasks across a manufacturing line so that each workstation has approximately the same cycle time. When cycle times are uneven, bottlenecks occur, leading to idle machines or excessive Work-in-Process (WIP) inventory. To solve this, physical hardware must be adaptable.

Aluminium profile conveyor frames are engineered using T-slot extrusions—typically based on the ISO 9001 quality standards for manufacturing consistency—which allow for the infinite positioning of sensors, diverters, and structural supports without the need for drilling or welding. This "Meccano-like" flexibility is essential when a shift in product demand requires adding a buffer zone or extending a cooling section to balance the output of a high-speed filler with a slower secondary packaging unit.

Mechanical Advantages: Aluminium vs. Stainless Steel

While stainless steel is the standard for high-hygiene washdown environments, aluminium profiles dominate general assembly, e-commerce, and dry-food packaging due to their strength-to-weight ratio and modularity.

Feature	Aluminium Profile Frames	Welded Stainless Steel
Material Weight	~2.7 g/cm³ (Lightweight)	~8.0 g/cm³ (Heavy)
Assembly Method	T-Slot Nut & Bolt (Reconfigurable)	Welding (Permanent)
Corrosion Resistance	Anodized (High)	Passivated (Excellent)
Lead Time	1–2 Weeks	4–6 Weeks
Modularity	Infinite adjustment	Limited to rework
Static Load	Medium-High	Very High

Engineering for Line Balancing: Key Components

Effective line balancing requires more than just a straight run of belt. It requires a frame system that can accommodate complex movements.

1. Integration of Buffer Zones

To balance a line, you often need to "decouple" two machines. If a downstream labeler fails, the upstream filler should not have to stop immediately. Aluminium profile frames allow for the easy installation of multi-tier alpine conveyors or side-by-side accumulation tables. Because the profiles are standardized, adding a second level to an existing conveyor involves simply bolting on new vertical supports.

2. Mounting Precision Automation

For precise line balancing, sensors must be moved frequently to tune the flow. T-slots allow for the mounting of photoelectric sensors, pneumatic gates, and encoders anywhere along the frame. This is critical when fine-tuning the "pitch" of products to ensure the VFD soft-start tuning is synchronized with the physical spacing of the items.

3. Ergonomic Workstation Adjustments

In manual assembly lines, l

ine balancing often involves changing the number of operators. Aluminium frames can be adjusted in height or length to accommodate different ergonomic requirements, ensuring that the human element of the production cycle does not become the bottleneck.

Structural Integrity and Standards

Designers must adhere to specific mechanical standards to ensure that aluminium frames do not vibrate or deflect under load. Deflection calculations are typically based on the E-modulus of the aluminium alloy (usually 6063-T6). According to VDMA guidelines for modular automation, frames should be designed to handle both static loads and the dynamic forces generated by motor start-up torques.

Easy Conveyors specializes in these modular aluminium systems, providing the structural versatility required for European and North American manufacturers to pivot their production layouts quickly. Their systems often integrate with high-efficiency IE3 motors (IEC 60034-30-1) to ensure that the balanced line is also an energy-efficient one.

Implementation Strategies for Operations Managers

When selecting aluminium profile conveyor frames for a balancing project, consider the following technical criteria:

• T-Slot Compatibility: Ensure the profile series (e.g., 40x40mm or 45x45mm) is compatible with standard fasteners to avoid proprietary lock-in.
• Anodization Thickness: For longevity in industrial environments, a minimum anodization of 15 microns is recommended to prevent surface oxidation.
• Load Analysis: Calculate the point loads at the drive and tail ends. While aluminium is strong, excessive spans between support legs can lead to belt tracking issues due to frame deflection.
• Future-Proofing: Always select a frame profile that allows for the future addition of side guides or overhead structures for cable management.

Common Failure Modes in Modular Frames

1. Fastener Loosening: In high-vibration environments, standard T-nuts can vibrate loose. Use self-locking nuts or serrated washers to maintain frame squareness.
2. Improper Support Spacing: Following OSHA safety guidelines, frames must be secured to prevent tipping. Over-extending the distance between legs to save costs often leads to harmonic vibrations that interfere with sensor accuracy.
3. Point Load Failure: Attaching heavy components, like large drum motor selection units, to a single profile wall without reinforcement can cause the T-slot to deform. Use gusset plates to distribute the load across multiple profile faces.

Integration with Modern Control Systems

For a balanced line to function, the mechanical frame must support the digital architecture. Modern aluminium frames often feature "hollow" sections that act as integrated wire ways, protecting Ethernet and power cables from the external environment. This clean installation is vital when deploying distributed I/O modules that control the speed of individual conveyor segments to match the "takt time" of the overall process. By using modular frames, the transition from a simple transport line to a smart, balanced system is significantly simplified.
