Pallet Handling Conveyors for End-of-Line Automation: Technical Guide

Modern end-of-line pallet handling systems utilize heavy-duty roller or chain conveyors to move loads up to 1,500 kg at speeds of 12 to 18 meters per minute, serving as the critical link between robotic palletizing cells and automated storage and retrieval systems (AS/RS). These systems typically integrate frequency-controlled geared motors and decentralized I/O modules to ensure smooth acceleration and precise positioning within a ±2mm tolerance for robotic interaction.

The Role of Pallet Conveyors in Smart Manufacturing

As industrial facilities transition toward "Lights Out" manufacturing, the interface between production and logistics—the end-of-line—has become the primary focus for automation investment. Pallet handling conveyors are no longer simple transport mechanisms; they are sophisticated data-gathering nodes that synchronize production output with warehouse management systems (WMS).

Effective end-of-line automation relies on the seamless transition from primary packaging to secondary unit loads. A failure in the pallet conveyor line creates a bottleneck that can shut down an entire production facility within minutes. Therefore, selecting the right conveyor topology (chain vs. roller) and drive architecture is paramount for operational continuity.

Technical Comparison: Roller vs. Chain Pallet Conveyors

The choice between roller and chain conveyors is largely dictated by the pallet's orientation, the quality of the pallet runners, and the specific load requirements.

Feature	Powered Roller Conveyor (CDLR)	Pallet Chain Conveyor
Typical Load Capacity	500 kg - 1,500 kg	1,000 kg - 2,500+ kg
Drive System	Tangential or Chain-to-Chain	2 or 3 strands of 3/4" - 1" chain
Standard Speed	12 - 18 m/min	10 - 15 m/min
Pallet Compatibility	Good (runners perpendicular to rollers)	Excellent (runners parallel to chains)
Maintenance Profile	Moderate (bearing lubrication)	High (chain tensioning & oiling)
Cost Index	1.0 (Baseline)	1.2 - 1.4

Chain Driven Live Roller (CDLR) Conveyors

CDLR systems are the workhorse of end-of-line automation. They use a series of rollers powered by a continuous chain or a series of jump-chains. According to SEW-Eurodrive, these systems are best suited for standard Euro-pallets (800 x 1200 mm) or GMA pallets when the runners are oriented perpendicular to the rollers. This orientation ensures stable support and prevents the pallet from "crabbing" during transport.

Pallet Chain Conveyors

When pallets must be moved with their runners parallel to the direction of travel, or when handling damaged/non-standard pallets, multi-strand chain conveyors are preferred. These usually consist of two or three strands of heavy-duty precision roller chain. Because the contact area is limited to the chain strands, these conveyors are less sensitive to debris or irregularities on the bottom of the pallet.

Essential Components for End-of-Line Reliability

To achieve the 99.9% uptime required by modern fulfillment centers, several key components must be integrated:

1. High-Efficiency Gearmotors: Modern systems utilize IE3 or IE4 permanent magnet motors (IEC 60034-30-1) coupled with right-angle or helical-bevel gearboxes. These provide the high starting torque required to move static 1.5-ton loads.
2. Decentralized Frequency Inverters: Moving the VFD from the central cabinet to the motor (IP65/IP66 rated) reduces cabling costs and allows for localized "S-curve" acceleration profiles, which prevent pallet loads from shifting during starts and stops.
3. Pallet Centering and Squaring Stations: Before entering a robotic wrapping cell or an AS/RS, pallets must be perfectly aligned. Pneumatic or electric side-actuators square the pallet to the conveyor centerline.
4. Transfer Modules: Right-angle transfers (pop-up chain or roller) allow for complex layout routing in space-constrained environments.

For those designing integrated lines, Easy Conveyors offers a comprehensive range of modular pallet hand

ling components that simplify the transition from standard production conveyors to heavy-duty end-of-line systems.

Design Principles for Robotic Integration

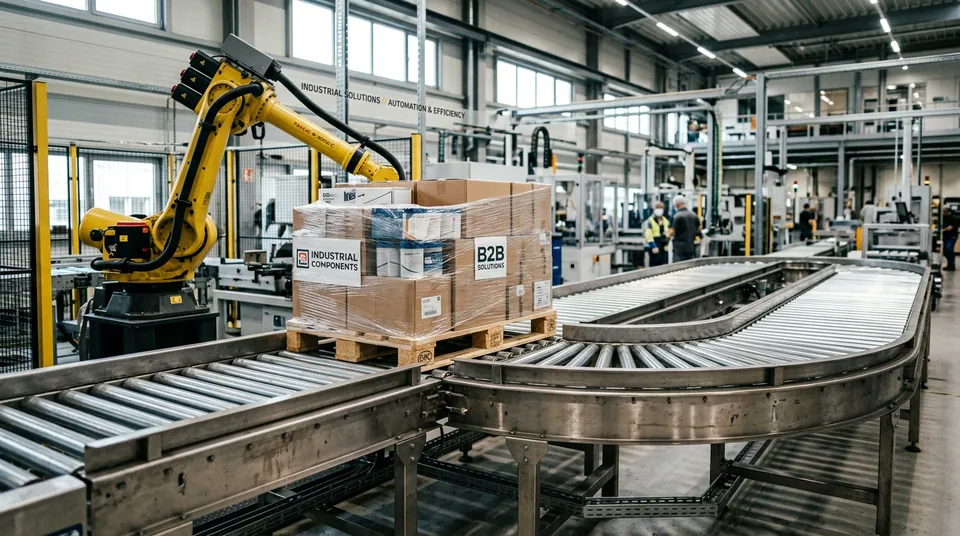

When a conveyor feeds a robotic palletizing cell, the requirements for precision increase exponentially. Robots require a "zero-pressure" accumulation zone where pallets are held in a fixed position without touching each other.

• Positioning Accuracy: Using laser distance sensors or high-precision proximity switches allows the conveyor to stop a pallet within ±2mm. This is critical for the robot's end-of-arm tool (EOAT) to accurately place layers.
• Structural Rigidity: The conveyor frames, often made of 4mm or 5mm powder-coated steel, must withstand the dynamic forces of a robot placing a 50kg box at high speed.
• Safety Interlocking: Under ISO 13849-1, the conveyor system must be integrated into the robot's safety PLC circuit. This ensures that if a human enters the cell via a light curtain, the conveyor drives are brought to a Safe Torque Off (STO) state immediately.

Maintenance and Troubleshooting in Heavy-Duty Systems

End-of-line conveyors operate in harsh conditions, often subjected to wood splinters from pallets, dust, and varying temperatures.

Common Failure Modes

• Chain Stretch: In CDLR systems, the drive chain will naturally elongate over time. If not tensioned, it can skip teeth on the sprockets, leading to jerky movement and eventual drive failure.
• Bearing Seizure: Roller bearings are life-lubricated but can fail prematurely if overloaded or exposed to wash-down chemicals not rated for the specific IP class.
• Sensor Misalignment: Photoeyes used for pallet detection are frequently bumped by forklifts or misaligned by vibrating loads. Utilizing heavy-duty steel guards for all peripheral sensors is a mandatory design standard in automotive and beverage plants.

Environmental Considerations and Efficiency

Sustainability in material handling is increasingly focused on energy consumption. Implementing "Sleep Modes" in the PLC logic—where sections of the conveyor shut down if no pallet is detected for more than 60 seconds—can reduce energy usage by up to 30%. Furthermore, the use of regenerative braking in vertical pallet lifters allows energy to be fed back into the local grid rather than being dissipated as heat.

For hygienic environments, such as dairy or pharmaceutical end-of-lines, stainless steel construction following EHEDG guidelines is necessary to prevent bacterial growth in "dead zones" where organic material might accumulate under the rollers.

The Future: Autonomous Mobile Robot (AMR) Interfaces

A significant trend in end-of-line automation is the replacement of long fixed conveyor runs with AMRs. In this architecture, a short "pick station" conveyor receives the finished pallet from the wrapper. An AMR with an integrated top-roller module then aligns itself with the stationary conveyor, performs a handshake via infrared or Wi-Fi, and receives the load. This hybrid approach offers unparalleled flexibility in plant layout, allowing for rapid scaling without the need for floor-bolted infrastructure.

Ensuring compatibility between stationary conveyors and mobile robots requires standardized conveyor heights (typically 450mm or 500mm) and precise docking sensors to manage the "gap" during transfer, preventing pallet runners from dropping between the two units.

Conclusion

Selecting pallet handling conveyors for end-of-line automation requires a balance of mechanical robustness and electronic precision. By adhering to international standards for motor efficiency and safety, and by choosing the appropriate transport media (roller vs. chain) for the specific load type, manufacturers can ensure their automated systems deliver the promised ROI through decades of reliable service. zones. Growing industries like e-commerce and pharmaceutical manufacturing continue to push the boundaries of pallet conveyor speed and data integration, making the conveyor the "central nervous system" of the modern warehouse.
