Accumulation Conveyors for Buffer Management in Packaging: A Design Guide

To maximize line OEE (Overall Equipment Effectiveness), accumulation conveyors must provide a buffer capacity typically calculated at 3 to 5 minutes of surge time to decouple machine dependencies and prevent micro-stops from cascading across the packaging line. By utilizing advanced technologies such as Zero Pressure Accumulation (ZPA), manufacturers can achieve product spacing that eliminates back-pressure, protecting delicate primary packaging while maintaining throughput speeds often exceeding 60 meters per minute.

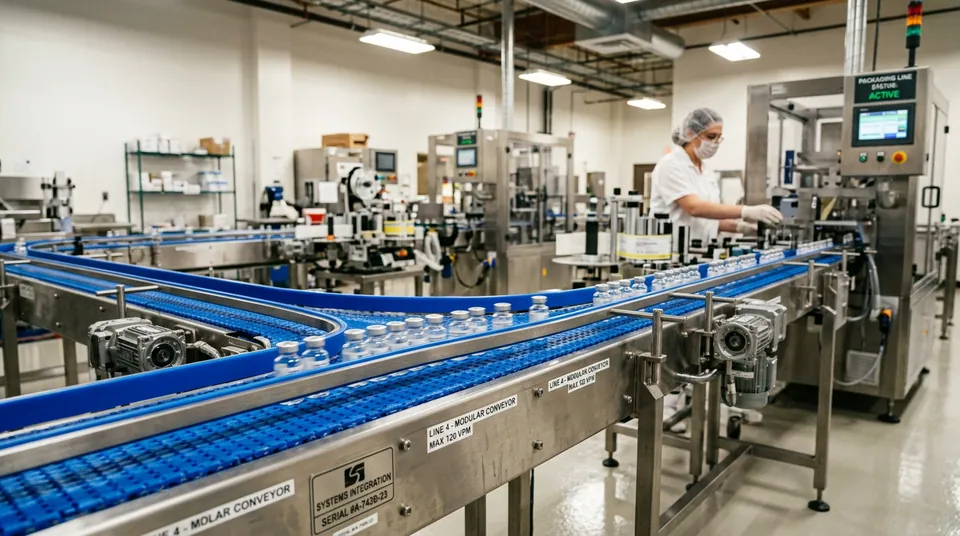

The Critical Role of Buffer Management in Modern Packaging

In a perfectly balanced world, every machine in a packaging line would operate at the exact same speed with 100% reliability. In reality, packaging lines are a series of interconnected machines—fillers, cappers, labelers, and case packers—each with its own mean time between failures (MTBF) and minor stoppages.

Accumulation conveyors serve as the "shock absorbers" of the factory floor. Without effective buffer management, a 30-second jam at the case packer immediately halts the high-speed filler upstream. By the time the filler restarts and ramps back up to speed, the lost production can equate to thousands of units. Efficient buffer management ensures that upstream operations can continue while downstream issues are resolved, and likewise, downstream machines can empty their queues if the upstream supply is briefly interrupted.

Key Technologies in Accumulation

The choice of accumulation technology depends heavily on the product's fragility, weight, and the required density of the buffer.

1. Zero Pressure Accumulation (ZPA)

ZPA is the gold standard for modern packaging lines. It utilizes sensors (typically photo-eyes) and logic controllers to divide the conveyor into discrete zones. Each zone is powered independently. When a product stops in Zone B, the motor for Zone A continues to run until a product is detected, at which point it stops, leaving a physical gap between items. This prevents "shingling" or damage caused by products pushing against one another.

2. Minimum Pressure Accumulation

This method uses a continuous drive (often a chain or belt) where the driving force is calibrated to be just high enough to move the product but low enough that the drive can slip under the product once it hits a physical stop. While cost-effective, it is unsuitable for lightweight primary packaging or fragile goods due to the constant frictional heat and pressure.

3. Vertical and Spiral Buffers

When floor space is at a premium, vertical accumulation systems—such as spiral towers or alpine conveyors—allow for significant dwell time in a small footprint. These are frequently used in cooling or drying stages between processes.

Technical Comparison: Accumulation Methods

Feature	Zero Pressure (ZPA)	Minimum Pressure	Spiral/Alpine Buffer
Product Protection	Excellent (No contact)	Fair (Constant contact)	Good (Continuous flow)
Energy Efficiency	High (Run-on-demand)	Medium	High
Complexity	High (Sensors/Logic)	Low (Mechanical)	Moderate
Space Efficiency	Standard	Standard	Excellent (Vertical)
Typical IP Rating	IP65/IP67	IP54	IP54/IP66

Sizing Your Buffer: The 3-5 Minute Rule

Engineering a buffer is a mathematical exercise in balancing cost versus uptime. A common industry rule of thumb is to design for 3 to 5 minutes of accumulation at the rated line speed.

If a beverage line is running 600 bottles per minute (BPM) and you anticipate the labeler might need a 4-minute label roll change or minor jam clearance, you need a buffer that can hold 2,400 bottles. If each bottle occupies 75mm of linear space, that equates to 180 meters of conveyor. In such cases, designers often move away from linear ZPA toward mass flow accumulation or multi-lane modular belt buffers.

For specialists looking to integrate these complex systems, Easy Conveyors provides modular components that allow for rapid scaling and reconfiguration of buffer zones, ensuring that even as product dimensions change, the accumulation logic remains robust.

Integration with Automation and VFDs

Modern accumulation is rarely "dumb" steel. It relies heavily on Variable Frequency Drives (VFDs) and high-efficiency motors. According to IEC 60034-30-1, motors should ideally meet IE3 or IE4 efficiency classes to minimize the operational cost of 24/7 packaging environments.

Furthermore, integrating the conveyor logic with the wider SCADA system allows for "dynamic buffering." This is where the conveyor speed automatically adjusts based on the current OEE of the downstream machine. If a case packer is running at 90% capacity, the upstream accumulation conveyor can gradually slow down or begin filling zones to prevent a sudden "stop-start" cycle, which is detrimental to motor life and energy consumption.

Design Trade-offs: POM vs. Stainless Steel

In packaging, material selection is dictated by the environment. For dry packaging (cartons, secondary cases), plastic modular belts made of Polyoxymethylene (POM) offer a low coefficient of friction and high strength (Intralox). However, in food or pharma "wash-down" environments, designers must adhere to EHEDG guidelines, utilizing stainless steel frames and open-profile modular belts to prevent bacterial growth in the accumulation zones.

Common Failure Modes and Maintenance

Accumulation systems are prone to specific wear patterns:

• Sensor Misalignment: In ZPA systems, vibrating lines can shift photo-eyes, causing "phantom" jams where the conveyor stops despite being empty.
• Belt Tensioning: High-density buffers exert significant load on the belt during startup. Proper tensioning and the use of soft-start profiles via VFDs are essential to prevent premature belt elongation.
• Motor Overheating: In minimum pressure systems, the motor continues to run while the belt slips under static product. This creates frictional heat that can degrade both the belt material and the motor insulation over time.

Future Trends: Intelligence at the Edge

The next generation of accumulation involves "smart zones" where each roller or belt segment contains its own decentralized logic controller. This removes the "single point of failure" inherent in large centralized PLC architectures. These systems use standardized protocols like IO-Link to provide real-time telemetry on motor temperature, vibration, and total cycles, enabling predictive maintenance before a buffer failure causes a total line shutdown.

By implementing these strategies, manufacturers can transform their material handling from a simple transport mechanism into a strategic asset that stabilizes production, reduces waste, and maximizes the ROI of expensive packaging machinery. For further technical specifications on motor efficiency and standards, resources from SEW-Eurodrive and NEMA provide the foundational benchmarks for industrial drive performance within these systems.
