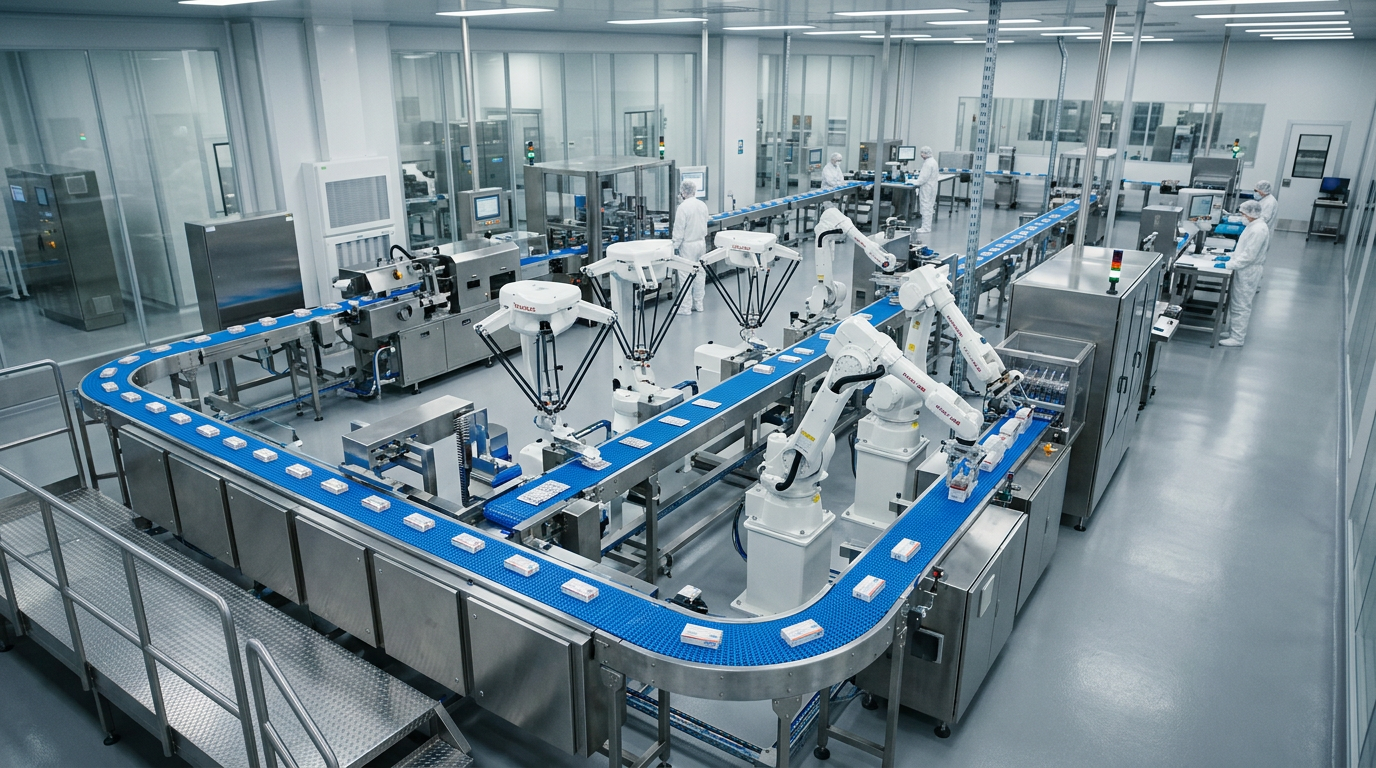

Maximizing OEE through Strategic Line Balancing in Material Flow

Line balancing in conveyor-based material flow refers to the strategic distribution of work across consecutive workstations to ensure a uniform cycle time, typically targeting a line efficiency of 85% or higher. By synchronizing the conveyor speed with the bottleneck’s throughput, operators can reduce idle time and work-in-process (WIP) accumulation, directly impacting Overall Equipment Effectiveness (OEE) through improved availability and performance metrics.

In modern manufacturing, the conveyor is no longer just a transport medium; it is the physical "clock" of the production facility. When the flow is unbalanced, the system suffers from "starving" (downstream stations waiting for parts) or "blocking" (upstream stations stopping because the buffer is full). Both scenarios degrade OEE, a standard metric managed under ISO 22400, which evaluates how effectively a manufacturing operation is utilized.

The Relationship Between Line Balancing and OEE

To improve OEE, one must address three components: Availability, Performance, and Quality. In a conveyor-driven environment, these are inextricably linked to material flow synchronization.

1. Availability: Unbalanced lines lead to frequent micro-stops. If a high-speed modular belt feeds a slow manual assembly station without adequate buffering, the belt must stop repeatedly. This reduces the total "uptime" available for production.
2. Performance: This is the ratio of Net Operating Time to Run Time. If your conveyor is rated for 60 units per minute but the line balance only allows 40, your performance rating drops.
3. Quality: Erratic flow, characterized by sudden starts and stops or high-density accumulation, increases the risk of product damage. Constant pressure in accumulation zones can mar delicate packaging or stress mechanical components.

Defining Takt Time and Cycle Time

The foundation of line balancing is the relationship between Takt Time and Cycle Time.

• Takt Time: The rate at which a finished product must be completed to meet customer demand.
  • Formula: Total Available Production Time / Customer Demand.
• Cycle Time: The actual time it takes for a specific workstation to complete its task.

For an optimized flow, the cycle time of every station must be slightly less than the Takt time. If any station’s cycle time exceeds the Takt time, that station becomes a bottleneck, and the OEE of the entire line is capped by that single point of failure.

Strategies for Optimizing Material Flow

1. Dynamic Buffering and Accumulation

In many high-speed packaging lines, such as those found in the beverage or pharmaceutical industries, balancing is achieved through accumulation. Using Modular Belt Conveyors allow for "zero-pressure accumulation," where sensors detect the presence of a product and stop individual zones to prevent collisions.

Easy Conveyors specializes in these modular systems, providing the flexibility needed to create multi-lane accumulation zones that decouple the bottleneck from the rest of the line. This decoupling is critical: it allows upstream machines to keep running (improving their individual OEE) even if a downstream machine has a momentary failure.

2. Variable Frequency Drive (VFD) Synchronization

Modern material handling relies on VFDs to modulate conveyor speed. Instead of simple on/off logic, "cascade control" adjusts the speed of conveyor segments based on the fill level of the downstream buffer. According to SEW-Eurodrive, using intelligent drive systems can reduce energy consumption by up to 30% while smoothing out the surges that lead to mechanical wear and tear.

3. Comparing Conveyor Types for Line Balancing

Feature	Steel Slat Conveyor	Modular Plastic Belt	Roller Conveyor (24V)
Max Speed	High (Up to 100m/min)	Medium (Up to 60m/min)	Variable
Accumulation	Difficult (High Friction)	Excellent (Low Back Pressure)	Zero Pressure (ZPA)
Wash-down	Limited	High (FDA/EHEDG)	Moderate
OEE Impact	High Maintenance	High Reliability	High Flexibility
Drive Type	AC Gearmotor	AC or Drum Motor	Internal 24V DC

Bottleneck Identification and "The Theory of Constraints"

Identified by Eliyahu M. Goldratt, the Theory of Constraints (TOC) suggests that a chain is only as strong as its weakest link. In a conveyor line, the bottleneck dictates the maximum possible OEE.

To identify the bottleneck, look for the point in the line with the highest accumulation of WIP. Once identified, the goal is to "elevate" the constraint. This can be done by:

• Increasing the local conveyor speed.
• Implementing a parallel path (diverting) to split the load between two identical machines.
• Improving the hygienic wash-down design to reduce cleaning downtime, which is a common technical bottleneck in food production.

Maintenance and OEE: Preventing the "Hidden Factory"

A significant portion of OEE loss comes from the "hidden factory"—work done to overcome unseen inefficiencies. For conveyors, this often manifests as "micro-stoppages" (less than 2 minutes) that aren't usually logged by operators but significantly degrade the Performance metric.

Common causes include:

• Belt Misalignment: Causes friction and speed fluctuations.
• Sensor Fouling: Especially in dusty environments, leading to false "block" signals.
• Motor Inefficiency: Older motors falling below IE3 efficiency standards can overheat during high-torque startup cycles required by unbalanced lines.

Implementing predictive maintenance through IoT sensors can track the current draw of motors. An increase in amperage often signals a mechanical bind or a line imbalance that is forcing the motor to work harder than its design parameters.

Digital Twins and Simulation

In complex sortation centers, line balancing is simulated before a single bolt is tightened. Engineers use digital twins to model different load scenarios. These models calculate the "Saturation Point"—the exact moment when the conveyor's density prevents efficient sortation. By testing "what-if" scenarios regarding conveyor pitch and speed, facilities can design for an OEE of 90%+ from day one. High-quality components from manufacturers like Interroll are often modeled in these simulations due to their standardized performance data.

Conclusion: The Path to Total Productive Maintenance (TPM)

Improving OEE through line balancing is a continuous process. It requires a shift from reactive repairs to proactive flow management. By selecting modular, flexible conveyor components and integrating smart drive technology, manufacturers can ensure that their material flow is a driver of efficiency rather than a source of downtime. Balancing the line doesn't just mean moving faster; it means moving with the rhythmic precision necessary to meet demand without straining the system.
