Optimizing Throughput: Modular Sortation Systems for E-commerce

Modular sortation systems in modern e-commerce fulfillment centers typically increase throughput by 30% to 50% compared to manual sorting while reducing the physical footprint by up to 40% through high-density vertical and horizontal routing. By utilizing standardized plug-and-play diverting modules and intelligent control logic, these systems allow facilities to scale from 2,000 to over 15,000 parcels per hour without requiring a total infrastructure overhaul.

The explosion of global e-commerce has fundamentally shifted the requirements for material handling. Warehouses are no longer static storage sites; they are high-velocity throughput engines that must manage an unpredictable mix of polybags, cardboard boxes, and fragile envelopes. Traditional, rigid sortation systems—characterized by massive, permanent steel structures—are increasingly being replaced by modular sortation architectures that offer the flexibility to adapt to seasonal peaks and shifting SKU profiles.

The Architecture of Modular Sortation

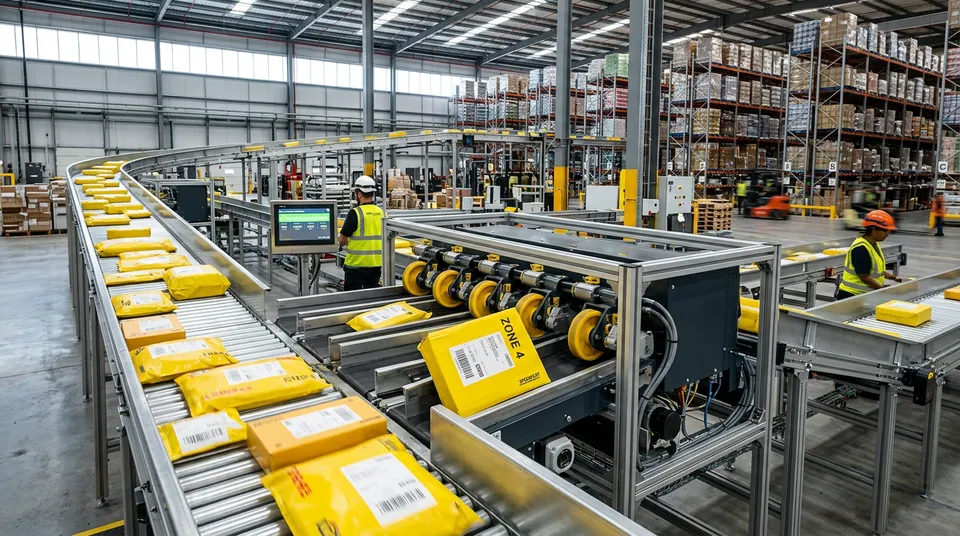

A modular sortation system is defined by its decentralized components. Unlike a singular, long-belt sorter driven by one massive motor, modular systems consist of discrete "zones" or units. Each unit—whether it is a pop-up roller, a swivel wheel diverter, or a cross-belt module—operates on its own logic controller and motor drive.

Key Components of the Modular Framework

• Induction Modules: These units align and space parcels using variable frequency drives (VFDs) to ensure the gap between items is optimized for the downstream diverter's cycle time.
• Diverter Modules: The "heart" of the system. Common types include 24V DC pulse rollers or 90-degree pop-up transfers.
• Carrier Media: These can range from standard PVC belts to modular plastic chains or even autonomous mobile robot (AMR) platforms that act as mobile sortation cells.
• Control Decentralization: Modern systems often utilize IO-Link or EtherNet/IP protocols to allow each module to communicate its status (occupied, jammed, or clear) to a master PLC.

Comparing Modular Sortation Technologies

Selecting the right sortation technology depends heavily on the "parcel mix" and the required throughput per hour (TPH). For e-commerce, the ability to handle polybags is critical, as they now represent a significant portion of outbound shipments.

Feature	Swivel Wheel Diverter	Pop-up Roller	Cross-Belt Sorter	Shoe Sorter
Typical Throughput	2,000 - 4,000 pph	1,500 - 3,000 pph	10,000 - 25,000 pph	5,000 - 15,000 pph
Parcel Versatility	High (Small/Med)	Medium (Flat bottoms)	Very High (All types)	High (Heavy items)
Footprint	Compact	Minimal	Large	Large/Linear
Maintenance	Low (Modular)	Low	High (Mechanical)	Moderate
Drive Technology	24V/48V DC	24V DC	Linear Synchronous	AC Gearmotor

Engineering for Scalability and Sustainability

One of the primary drivers for modularity is the reduction in Total Cost of Ownership (TCO). By utilizing 24V DC motor driven rollers (MDR), fulfillment centers can achieve significant energy savings. Unlike traditional AC-driven conveyors that run continuously, modular systems use "run-on-demand" logic. If no parcel is detected in a specific zone, the motor stops, drastically reducing wear and power consumption.

Engineers often look to the IE3 and IE4 efficiency classes (IEC 60034-30-1) when selecting the primary drive motors for induction lines. However, for the sortation modules themselves, high-torque brushless DC motors are the standard. These motors provide the rapid acceleration and braking required to "kick" a parcel off the main line into a secondary chute within milliseconds.

In Europe, companies like Easy Conveyors have pioneered the transition toward these flexible frameworks, providing sub-assemblies that integrate seamlessly into existing warehouse management systems (WMS). Their approach emphasizes the use of standardized aluminum profiles and modular belts, which simplifies both the initial installation and any future reconfigurations.

Overcoming Common Sortation Challenges

Handling Small Parallels and Polybags

The rise of the "polybag" has challenged traditional sorters. Lightweight, flexible packaging can easily get caught in the gaps between rollers or under the "shoes" of a sliding shoe sorter. Modular systems address this by using tight-radius transfers and specialized modular belt surfaces—often featuring high-friction inserts or micro-rollers—that ensure the parcel maintains its orientation during high-speed transfers.

Noise Reduction in Fulfillment Centers

The Occupational Safety and Health Administration (OSHA) sets strict limits on noise exposure in industrial environments (OSHA 1910.95). Traditional pneumatic pushers and high-speed chain sorters are notoriously loud. Modular systems, utilizing precision-molded plastic components and direct-drive DC motors, operate at significantly lower decibel levels, often below 70 dB(A), improving the working environment for floor staff.

Integrating Advanced Sensing and AI

To achieve high-accuracy sortation, modular systems rely on advanced sensing. This includes:

1. Dimensioning and Weighing (DWS): Capturing the "cubed" dimensions of a parcel mid-flight to determine the best sort destination.
2. Vision Systems: Barcode and QR code scanners that can read labels through plastic film or at extreme angles.
3. Predictive Maintenance: Sensors that monitor the vibration and temperature of divert motors, alerting maintenance teams before a component fails. This aligns with the principles of Industry 4.0 and smart manufacturing standards.

Design Trade-offs: Speed vs. Flexibility

When designing a sortation loop, engineers must balance the "pitch" (the distance between parcels) with the mechanical speed of the diverter. A shorter pitch allows for higher TPH but requires a diverter with a faster reset time.

• Rule of Thumb: For every 10 meters of conveyor, adding a modular divert point is approximately 60% faster to install than a traditional pneumatic pop-up, as it requires only a single power drop and a network connection rather than complex air piping.

Furthermore, modular systems are inherently "fault-tolerant." In a traditional centralized system, a single motor failure can stop the entire line. In a modular setup, if one divert module fails, the control logic can often "re-route" parcels to an alternative spur or allow them to bypass the failed module for manual processing at the end of the line, maintaining 90%+ system availability.

Conclusion: The Future is Reconfigurable

The future of e-commerce fulfillment lies in the "Micro-Fulfillment Center" (MFC) and the urban warehouse. These environments lack the space for 100-meter-long sorters. Modular sortation systems, with their ability to climb inclines, turn tight corners, and be reconfigured over a weekend, provide the agility required in a volatile market. By adhering to international safety and efficiency standards, such as those defined by ISO and IEC, manufacturers can ensure their sortation infrastructure is not just a tool for today, but a foundation for the automated future.

Integrating these systems requires a deep understanding of both mechanical throughput and software logic. Whether you are optimizing "drum motor selection" for a heavy-duty induction line or fine-tuning "VFD soft-start tuning" for a fragile goods sorter, the goal remains the same: moving more items, more accurately, with less energy. Maintaining a "hygienic wash-down design" is also becoming increasingly relevant as e-commerce expands into fresh grocery delivery, necessitating components that meet EHEDG (ehedg.org) guidelines for cleanliness and food safety.
