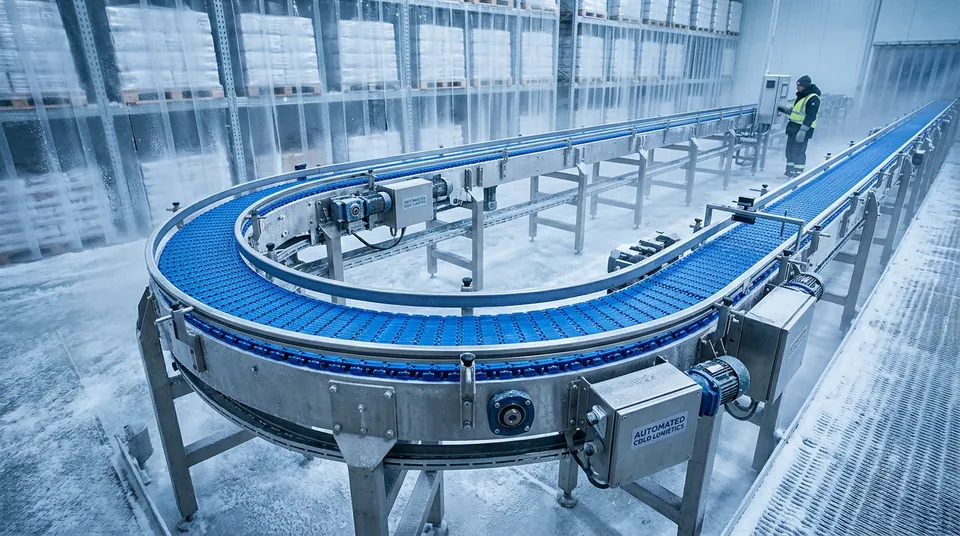

Engineering Resilience: Modular Curve Belts for Cold Storage Warehouses

Modular curve belts for cold storage warehouses are specialized material handling solutions engineered to maintain mechanical integrity and flexibility in sub-zero environments while executing directional changes in tight footprints. These systems utilize low-temperature-resistant polymers and specialized bearing lubricants to prevent the brittleness and lubrication failure common in standard conveyor components at temperatures ranging from -5°C to -40°C.

Effective cold chain logistics requires more than just standard automation; it demands hardware that can withstand thermal shock and continuous operation in freezing conditions. Modular curve belts offer a space-efficient alternative to long-radius turns, ensuring that frozen goods move seamlessly through sorting, blast freezing, and palletizing stages without product displacement or mechanical fatigue.

Key Takeaways

• Material Selection: Use of Acetal (POM) or specialized polyethylene (PE) is critical to prevent belt snapping in deep-freeze zones.
• Space Optimization: Curve modules allow for 45°, 90°, and 180° turns within a compact radius, maximizing high-density cold storage floor space.
• Maintenance: Open-surface modular designs facilitate rapid clearing of ice buildup and easier cleaning compared to solid-surface fabric belts.
• Energy Efficiency: Low-friction materials reduce the torque required from motors, crucial for maintaining IE3 or IE4 efficiency standards in high-utility cost environments.

Technical Challenges of Cold Storage Conveying

In a cold storage environment, the physics of material handling changes. Standard PVC or rubber belts become rigid and prone to cracking, while standard rollers often seize due to the solidification of internal grease. Modular curve belts address these issues through segmented construction.

Thermal Contraction and Expansion

Every material has a coefficient of thermal expansion. In a blast freezer, a conveyor might experience a temperature drop of 60°C in a matter of minutes. Modular belts are designed with lateral play in the rod-and-link assembly, allowing the belt to "breathe." This prevents the bowing or tracking issues that plague solid-surface belts when tensioned incorrectly across temperature gradients.

Moisture and Frost Accumulation

One of the primary failure modes in cold storage is the accumulation of frost. When warm, humid air from a loading dock enters a freezer zone, it condenses and freezes on the conveyor surface. Modular curve belts with an "open area" percentage (typically 15% to 40%) allow air to circulate around the product and prevent the belt from freezing to the slider bed or wear strips.

Engineering Advantages of Modular Curve Belts

When designing a layout for a refrigerated warehouse, the turn radius is often the most significant constraint. Traditional conveyors require long straight runs before and after a turn to ensure proper tracking.

Tight Radius Capabilities

Modular curve belts, such as those integrated by Easy Conveyors, utilize side-flexing chains that can achieve an internal radius/belt width ratio as low as 2.0. This allows engineers to design "S-curves" or "U-turns" that squeeze more throughput into a smaller refrigerated footprint—a critical factor given that cold storage real estate is significantly more expensive than ambient warehousing.

Structural Material Specifications

For temperatures between 0°C and -40°C, the choice of plastic is paramount:

1. Acetal (POM): Excellent for strength and low friction, but can become brittle below -20°C if not specifically formulated for freezer use.
2. Polyethylene (PE): The preferred choice for deep-frozen applications (-40°C). It retains impact resistance and flexibility even in extreme cold.
3. Reinforced Polyamide: Often used for the support structure and wear strips to ensure dimensional stability.

Drive Systems and Motorization in Freezing Zones

The motor is the heart of the curve belt system, but in cold storage, it faces unique hurdles. Condensation can lead to internal corrosion, and cold can thicken the gearbox oil, leading to "cold starts" that trip breakers.

• IP Ratings: Support modules in cold storage should utilize motors with at least an IP66 rating to protect against washdown and condensation.
• Lubrication: Gearboxes must be filled with low-temperature synthetic oils (H1 food-grade if applicable) that maintain a stable viscosity at -30°C.
• Heaters: In some cases, anti-condensation heaters are installed within the motor housing to keep the windings dry during periods of inactivity.

Design Best Practices for Cold Chain Integration

To ensure a modular curve belt survives the rigors of an industrial freezer, several design rules should be followed:

1. Longitudinal Tension Management

Because modular belts are positively driven by sprockets, they do not require the high tension of friction-driven belts. In cold storage, keeping tension at the minimum required level extends the life of the plastic pivot pins, which are most susceptible to shear stress when cold.

2. Wear Strip Selection

The interface between the modular belt and the frame (the wear strips) must be made of Ultra-High Molecular Weight Polyethylene (UHMW-PE). This material has an extremely low coefficient of friction and does not absorb moisture, preventing the belt from "surging" or "sticking" after a weekend shutdown.

3. Catenary Sag and Take-ups

As the belt contracts in the cold, its overall length decreases. Designers must account for this by providing a catenary sag area or a weighted take-up mechanism that can accommodate 1-2% of the total belt length in thermal contraction.

Maintenance and Operational Longevity

Maintenance in a -25°C environment is a task every technician wants to finish quickly. Modular curve belts facilitate this through their "bricklay" pattern construction. If a single module is damaged by a stuck pallet or a fork-truck clip, only the affected modules need replacement—not the entire belt.

Inspection Checklist for Cold Storage Curves:

• Pin Integrity: Check for "head-clipping" or pins migrating out of the side of the modules.
• Sprocket Engagement: Ensure ice buildup isn't forcing the belt to jump teeth on the drive shaft.
• Ice Scraping: Install passive scrapers or brushes on the return path to shed frost before it reaches the drive sprockets.

Sustainability and Efficiency

Energy consumption is a massive overhead in cold storage. Each watt of heat generated by a conveyor motor must be removed by the refrigeration system, essentially paying for the energy twice. Modular curve belts with high-efficiency IE3 motors and low-friction plastic components minimize this heat gain. Furthermore, the longevity of polyethylene modules—which can last 5-10 years even in harsh conditions—reduces the environmental impact compared to short-lived rubber alternatives.

Conclusion

The implementation of modular curve belts for cold storage warehouses represents a strategic investment in reliability. By selecting materials rated for sub-zero temperatures and leveraging the space-saving benefits of side-flexing modularity, manufacturers can optimize their cold chain flow. As automation becomes more prevalent in the "dark warehouse" model, these robust, low-maintenance components will remain the backbone of frozen material handling.
