Engineering Modular Conveyor Systems for Cold Storage Warehouses

Modular conveyor systems for cold storage must operate within a temperature range of -25°C to -30°C, requiring specialized low-temperature lubricants, condensation-resistant electronics, and materials like Polyethylene (PE) that maintain impact strength in sub-zero environments according to ISO 21469 safety and hygiene standards. These systems reduce energy consumption by up to 30% compared to traditional configurations by utilizing high-efficiency IE4 motors and modular segments that prevent thermodynamic "cold bridges."

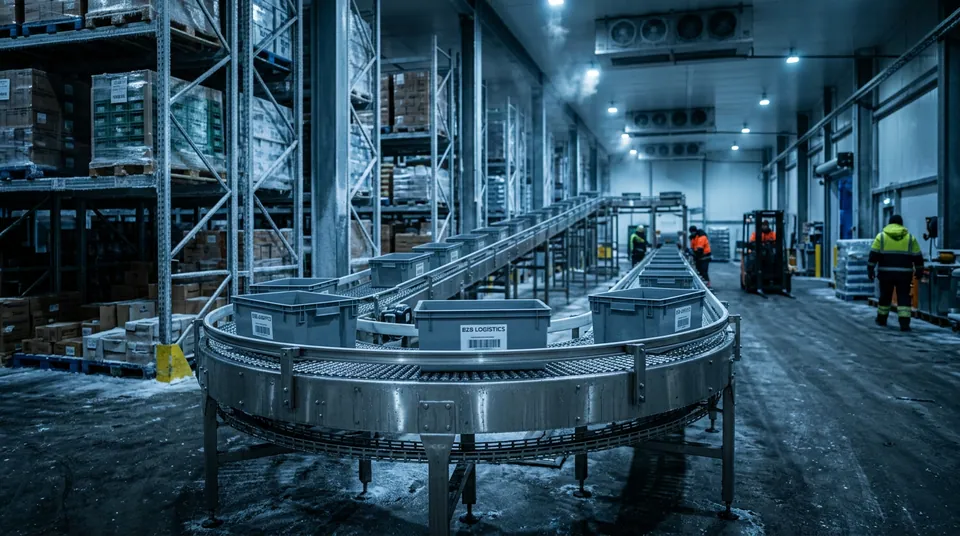

The Engineering Challenges of Sub-Zero Logistics

Cold storage environments represent one of the most demanding applications for material handling equipment. Beyond the physical comfort of operators, the mechanical integrity of every component is tested by thermal contraction, moisture migration, and the crystallization of lubricants. When designing a modular conveyor system for these zones, engineers must prioritize thermal stability and energy efficiency.

A critical factor in cold chain logistics is the "thermal bridge." Standard steel conveyor frames can act as massive heat sinks, drawing energy out of the environment and forcing the refrigeration system to work harder. Modular systems using high-performance thermoplastics and specialized aluminum alloys mitigate this effect, providing better insulation properties than traditional heavy-steel rollers.

Material Selection: Plastics and Metals

At temperatures below -20°C, standard plastics like Polypropylene (PP) become brittle and prone to shattering under impact. For cold storage, Polyethylene (PE) or specialized Acetal (POM) blends are preferred. According to Intralox, material choice directly impacts the fatigue life of modular belts in freezing conditions.

Feature	Standard Modular System	Cold Storage Optimized
Belt Material	Polypropylene (PP)	Polyethylene (PE) / LT-POM
Lubrication	Standard Mineral Oil	Synthetic ISO VG 32 (Low Temp)
Motor Class	IE2 / IE3	IE4 (Permanent Magnet)
Drive System	External Gearmotor	Drum Motor or IP66 VFD-integrated
Control Logic	Standard Stop/Start	Anti-Condensation Pre-heat

Drive Technology and Motor Efficiency

In deep-freeze warehouses, motor efficiency is not just about electricity bills; it is about heat dissipation. Every watt of heat generated by an inefficient motor must be removed by the warehouse’s cooling system—essentially paying twice for the same energy.

Utilizing IE4 permanent magnet motors (IEC 60034-30-1) significantly reduces the heat signature of the conveyor line. For these applications, Easy Conveyors provides modular solutions that support decentralized drive architectures, which are easier to maintain in restricted-access c

old zones than centralized bulky drive stations.

Furthermore, "drum motor selection" plays a vital role. Internalized drives (drum motors) are often filled with specialized food-grade oil that maintains its viscosity at -30°C, ensuring consistent torque during startup. If using external gearmotors, they must be equipped with space heaters to prevent condensation from freezing inside the gearbox housing during downtime.

Managing Condensation and Ice Build-up

The greatest enemy of an automated cold warehouse is the transition zone. When a conveyor moves from a chilled loading dock (+2°C) into a deep-freeze cell (-25°C), moisture in the air flash-freezes on the belt surfaces.

1. Air Curtains and Tunnels: Modular conveyors should be enclosed in insulated tunnels at transition points.
2. Scraper Systems: Mechanical scrapers help remove frost from the belt surface before it can jam the sprocket engagement.
3. VFD Soft-start Tuning: To prevent snapping brittle belts or slipping on iced rollers, "VFD soft-start tuning" is essential. Ramp times should be extended to 5-10 seconds to allow for gradual torque application.

Maintenance and Lubrication Standards

Maintenance in cold storage is difficult and expensive. Therefore, modularity is a prerequisite. The ability to snap out a damaged plastic module and replace it in minutes—without tensioning tools—saves hours of labor in a -25°C environment.

Lubricants must comply with ISO 21469 for food safety while maintaining a pour point well below the ambient operating temperature. Using "hygienic wash-down design" principles even in dry cold storage is beneficial, as it prevents the accumulation of ice and debris in corners that are difficult to reach for cleaning teams wearing heavy thermal gear.

Controls and Connectivity

The electronics governing the modular system must be rated for the environment. Standard PLCs and HMI panels will fail if not housed in heated NEMA 4X enclosures (NEMA standards). However, the trend is moving toward decentralized I/O modules that are vacuum-sealed to prevent internal frosting. Sensors used for pallet detection or parcel sortation must use heated lenses or high-intensity infrared to see through the occasional fog or "ice smoke" common in cold-store transitions.

By integrating smart sensors with the VFDs, the system can detect "increased drag" caused by ice buildup. If the current draw on a motor increases by more than 15% without a corresponding load increase, the control system can trigger a "thaw cycle" or alert maintenance to inspect for frost on the rollers. Similarly, ensuring proper "drum motor vs gearmotor" trade-offs during the design phase ensures that the system can handle the high-viscosity startup loads inherent to the first 20 minutes of operation after a weekend shutdown.
