Tool-less Belt Change Designs that Boost OEE on Modular Conveyors
Discover how tool-less belt change designs reduce MTTR by up to 80%, boosting OEE and hygiene in food and packaging lines through engineering innovation.
Modular conveyor systems equipped with tool-less belt change mechanisms can reduce Mean Time to Repair (MTTR) by up to 80% compared to traditional fastened systems, directly increasing Overall Equipment Effectiveness (OEE) by minimizing planned and unplanned downtime. By eliminating the need for specialized hand tools and external technicians, these designs simplify sanitation cycles and maintenance workflows, often allowing a full belt swap in under 10 minutes.
The Critical Link Between Maintenance Speed and OEE
In high-volume manufacturing, Overall Equipment Effectiveness (OEE) is the gold standard for measuring productivity. It is calculated by multiplying Availability, Performance, and Quality. Of these, Availability is most frequently hampered by maintenance requirements and sanitation Changeovers. Traditional modular plastic belts (MPB) often require technical staff to drive out hinge pins using hammers and drifts, a process that is not only slow but risks damaging the belt modules or the conveyor frame.
Tool-less belt change designs solve this by utilizing captive pins, "pop-up" sprocket interfaces, or quick-release tensioners. When downtime on a primary packaging line can cost upwards of €5,000 per hour, the ability to perform a "wash-down ready" strip-down without a toolbox becomes a massive competitive advantage.
Quantifying the Availability Boost
Consider a food processing facility that performs a full deep clean once per shift.
- Traditional Design: 20 minutes to slacken, 15 minutes to remove pins, 30 minutes to clean, 20 minutes to re-assemble. Total: 85 minutes.
- Tool-less Design: 2 minutes to slacken (quick-release), 3 minutes to remove belt segments, 30 minutes to clean, 5 minutes to re-assemble. Total: 40 minutes.
Over a three-shift operation, this saves 135 minutes per day, reclaiming over 800 hours of production time annually.
Engineering Principles of Tool-less Belt Systems
The shift toward tool-less operation relies on three primary engineering innovations: quick-tensioning tail sections, captive rod retention, and cantilevered frames.
1. Quick-Release Tensioners

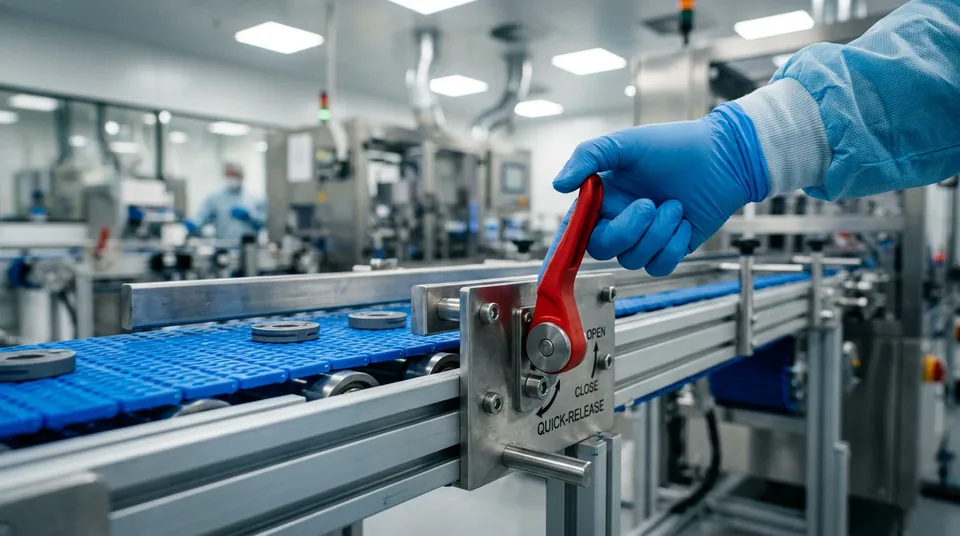

Instead of threaded take-up bolts that require a wrench and periodic re-squaring of the rollers, tool-less systems use cam-over levers or pneumatic actuators. These mechanisms allow the operator to instantly flip a lever, collapsing the belt tension by 50–100mm. This provides enough slack to lift the belt off the sprockets for cleaning the underside of the modules or the wear strips.
2. Captive Rod Retention (The Link Evolution)
In standard modular belts, the rods (hinge pins) are held in place by a headed end or an interference fit. Tool-less variants, such as those standardized by Intralox, utilize "slug-retention" or "snap-in" rods. These rods can be released by pressing a finger into a recessed port or sliding a locking tab. Easy Conveyors specializes in these high-efficiency modular systems, ensuring that even complex layouts like radius belts can be disassembled by floor operators without technical intervention.
3. Cantilevered Support Frames
For endless belts (like TPU or fabric belts often used in small modular systems), removal typically requires disassembling the conveyor stand or side plates. A cantilevered design supports the conveyor from only one side, allowing the belt to be slid off the open side once tension is released. This is particularly vital in the bakery and confectionery industries to meet EHEDG guidelines for hygienic design.
Technical Comparison: Traditional vs. Tool-less Belt Systems
| Feature | Traditional Modular Belt | Tool-less Modular System |
|---|---|---|
| MTTR (Changeover) | 45–90 Minutes | 5–15 Minutes |
| Tool Requirements | Wrenches, Hammers, Punches | None (Hands-only) |
| Worker Skill Level | Maintenance Technician | Line Operator |
| Hygiene Standard | Basic FDA/USDA | High-Care / EHEDG |
| Hardware Risk | High (Dropped screws/clips) | Zero (Captive components) |
| Component Fatigue | High (Impact during pin removal) | Low (Controlled release) |
Easy Conveyors stocks the modular systems discussed here — ready to ship across Europe.
Impact on Food Safety and Compliance
Beyond OEE, tool-less designs are a cornerstone of modern Food Safety Modernization Act (FSMA) compliance and FDA regulations. When a belt is difficult to remove, operators may skip cleaning the "dead zones" behind the sprockets or underneath the return rollers.
By making the belt "easy-to-remove," the facility ensures that the hygienic wash-down design is fully utilized. For instance, the use of Blue POM (Polyoxymethylene) materials combined with tool-less pins allows for rapid visual inspection. If a rod is not fully seated, the color contrast and the tactile "click" of the locking mechanism prevent the belt from failing during high-speed operation.
Integration with Automation and VFDs
Modern tool-less systems often incorporate smart sensors to ensure the belt is correctly tensioned after a changeover. When integrated with a VFD soft-start tuning configuration, the system can detect if a belt has been installed too tightly or too loosely by monitoring torque ripples during the first 30 seconds of execution.
If the drum motor selection was based on high-efficiency IE3 or IE4 standards (IEC 60034-30-1), ensuring correct belt tension is critical. An over-tensioned belt can increase the radial load on the motor bearings, reducing service life and increasing energy consumption—counteracting the OEE gains achieved by the faster changeover.
Failure Modes to Avoid
While tool-less designs significantly improve OEE, they are not immune to failure if improperly managed:
- Debris Intrusion: If the locking tabs for the rods become packed with product (e.g., sugar or flour), they may become difficult to actuate by hand. Regular pressurized air or water cleaning is still required.
- Incomplete Locking: In some designs, a "snap-in" rod may feel secure but isn't fully seated. This can lead to the belt "unzipping" during production. Systems with visual indicators (alignment marks) are preferred.
- Material Elasticity: In high-temperature environments, plastic modules expand. A tool-less tensioner must have enough travel to accommodate this expansion without needing a secondary manual adjustment.
Conclusion: The ROI of "No Tools"
Investing in tool-less belt change designs is rarely about the belt itself; it is about the production minutes recovered. By empowering operators to handle their own sanitation and basic maintenance, manufacturers remove the "maintenance bottleneck," allowing highly skilled technicians to focus on predictive maintenance and automation optimization rather than swinging hammers at plastic pins. In the context of "Industry 4.0," the simplest mechanical innovation—the tool-less link—remains one of the most effective ways to drive measurable gains in factory throughput. Management should prioritize these systems for any line where changeover frequency exceeds once per week.
Frequently Asked Questions
What is the difference between a standard modular belt and a tool-less design?
Tool-less designs often feature captive rods or snap-on links that allow an operator to disassemble the belt by hand or with a simple release lever, whereas traditional modular belts require hammers and punches to drive out hinge pins.
How do tool-less belts improve OEE?
They increase Availability (the 'A' in OEE) by significantly shortening the time required for sanitation-related downtime and unplanned belt repairs.
Are tool-less belts less durable than traditional belts?
No, modern tool-less links are engineered to meet or exceed the tensile strength of traditional pinned belts, often using high-strength polymers like POM or Reinforced Polypropylene.
What safety features should I look for in a tool-less system?
Ideally, your belt pins and modules should be a high-contrast color (like bright blue) to help operators visually confirm that the locking mechanism is securely seated.
Can tool-less systems be used in wash-down environments?
Specifically in food processing, 'tool-less' usually means 'accessible.' If a belt is easy to remove, the conveyor frame becomes fully accessible for wash-down, reducing the risk of bacterial harborages.
