Mastering Modular Curve Conveyors for Tight-Radius Layouts
Tight-radius modular curve conveyors allow for 90° and 180° turns in spaces 40% smaller than standard layouts using side-flexing belts and specialized guiding.
Modular curve conveyors for tight-radius layouts typically achieve a minimum inside radius of 1.5 to 2.0 times the belt width, allowing for 90° or 180° turns in floor spaces up to 40% smaller than traditional conveyor bends. These systems rely on side-flexing plastic modular belts and high-performance wear strips to maintain product orientation and speed consistency through the transition.
The Physics of Tight-Radius Material Handling

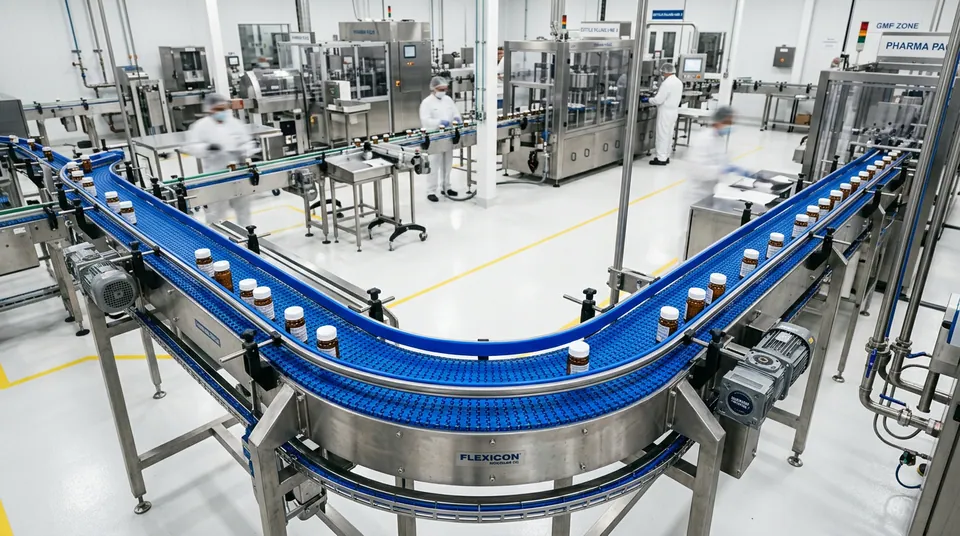

In modern facility design, square footage is often the most expensive asset. When designing production lines for food packaging, pharmaceutical bottling, or e-commerce sortation, the ability to change direction in a confined footprint is critical. Modular curve conveyors solve this by using side-flexing belts—interlocking plastic modules with elongated pivot rods that allow the belt to collapse on the inner radius and expand on the outer radius.
The performance of these systems is governed by the collapse factor. According to industry standards for modular belt geometry, a standard side-flexing belt requires a radius of 2.2 times the width ($R = 2.2 \times W$), but advanced "tight-radius" modules can push this limit down to $1.5 \times W$ or even $1.0 \times W$ with specialized guide railings. This enables engineers to design "S-curves" and "U-turns" that would be impossible with traditional PVC or rubber belt conveyors without using complex and maintenance-heavy "turn disks" or "pivots."
Key Design Parameters for Tight Radius Curves
When selecting a modular curve system, three technical factors dictate the success of the installation:
- Inside Radius ($R_{in}$): This is the distance from the center of the turn to the innermost edge of the belt. A smaller $R_{in}$ saves space but increases the tensile load on the outer edge of the belt.
- Belt Width ($W$): As the belt gets wider, the differential speed between the inner and outer edge increases significantly. Centrifugal forces can affect product stability, especially for tall, lightweight items like empty PET bottles.
- The "K-Factor": Most manufacturers, including Easy Conveyors, utilize specific K-factors to calculate the maximum allowable load. Exceeding these limits leads to "scalloping" or premature elongation of the belt edge.
Comparison: Modular Curves vs. Alternative Turning Technologies
| Feature | Modular Curve Conveyor | Fabric Belt (Tapered) | Plastic Chain (Slat) |
|---|---|---|---|
| Min. Radius Ratio | 1.5 - 2.2 x Width | 1.0 - 1.5 x Width | Fixed (approx. 500mm) |
| Load Capacity | High (distributed) | Medium | Low (point loads) |
| Hygiene (EHEDG) | Excellent (open hinge) | Moderate | Good |
| Maintenance | Low (modular repair) | High (belt tracking) | Medium |
| Noise Level | < 70 dB | < 65 dB | > 75 dB |
| Drive System | Positive (Sprockets) | Friction | Positive (Sprockets) |
Material Selection: POM vs. PP vs. PA
The choice
Easy Conveyors stocks the modular systems discussed here — ready to ship across Europe.
of module material is dictated by the environment and the friction coefficient of the wear strips.
- Acetal (POM): The standard for tight curves due to high tensile strength and a low coefficient of friction. It provides the stiffness needed to prevent the belt from "lifting" out of the track during high-speed turns.
- Polypropylene (PP): Best for chemical resistance or high-temperature washdown areas, though it has lower pull strength and is more susceptible to thermal expansion—a critical factor in long curve runs (reference ISO 1101 for geometric tolerances).
- Polyamide (PA): Frequently used for high-load applications; however, it absorbs moisture and can swell in food-grade "wet" environments.
Overcoming the "Lift-Off" Effect
In a tight-radius turn, the belt naturally wants to pull toward the center and lift upward due to the tension on the outer radius. Modern systems combat this using tab or magnetic guides.
- Tab Guides: Small protrusions on the bottom of the belt modules that lock into a groove in the conveyor frame.
- Magnetic Tracks: Used in high-end stainless steel systems to hold the belt flat without mechanical friction, reducing wear and energy consumption.
To ensure motor efficiency in these complex layouts, engineers should specify motors that meet the IE3 or IE4 efficiency classes to offset the slight increase in frictional drag inherent in curve systems.
Maintenance and Lifecycle Management
The primary failure mode in modular curve conveyors is wear on the inner radius wear strips and the outer edge belt links. Because the tension is focused on the outer 20% of the belt width during a turn, uneven wear is inevitable. Implementing a "VFD soft-start tuning" protocol is essential for these systems. Abrupt starts under full load can snap the pivot rods in the modules or cause the belt to jump the sprocket teeth. By ramping up the frequency over 2-3 seconds, the tension distributes more evenly across the side-flexing pins.
For food processing applications, hygiene is paramount. Systems should be designed following EHEDG guidelines to ensure that curve tracks do not have "shadow zones" where bacteria can accumulate. Open-frame designs that allow for 360-degree washdown are the gold standard for protein or dairy handling.
Conclusion: Optimizing the Layout
Modular curve conveyors are no longer just "add-ons" to a straight line; they are the architectural anchors of modern automation. By leveraging the superior strength-to-weight ratio of Acetal modules and precise tab-guiding, manufacturers can compress their footprint without sacrificing throughput. When selecting a system, always verify the manufacturer's maximum belt pull calculations against your worst-case "accumulation" scenario to ensure long-term reliability.
Frequently Asked Questions
What is the difference between a standard and tight-radius curve?
A tight-radius curve typically achieves a radius of 1.5 to 2.0 times the width, whereas a standard curve requires 2.2 to 3.0 times the belt width.
Can modular curves handle high-speed applications?
Yes, but you must use a 'tab' or 'magnetic' belt tracking system to prevent the inner edge of the belt from lifting off the frame under high tension.
Why is Acetal often used instead of Polypropylene for curves?
Acetal (POM) is the preferred material because it has high tensile strength and low friction, which are necessary to handle the stress concentrated on the outer belt edge.
What are the common failure modes in curve conveyors?
The most common failures are snapped pivot rods and worn inner wear strips caused by excessive belt tension and improper VFD ramp-up settings.
Can I have a curve that is also an incline?
While modular belts can incline, it is generally recommended to keep curves horizontal to prevent complex compound forces that lead to product slippage.
