The Engineer's Guide to Stainless Steel Modular Belts for Hygienic Wash-Down

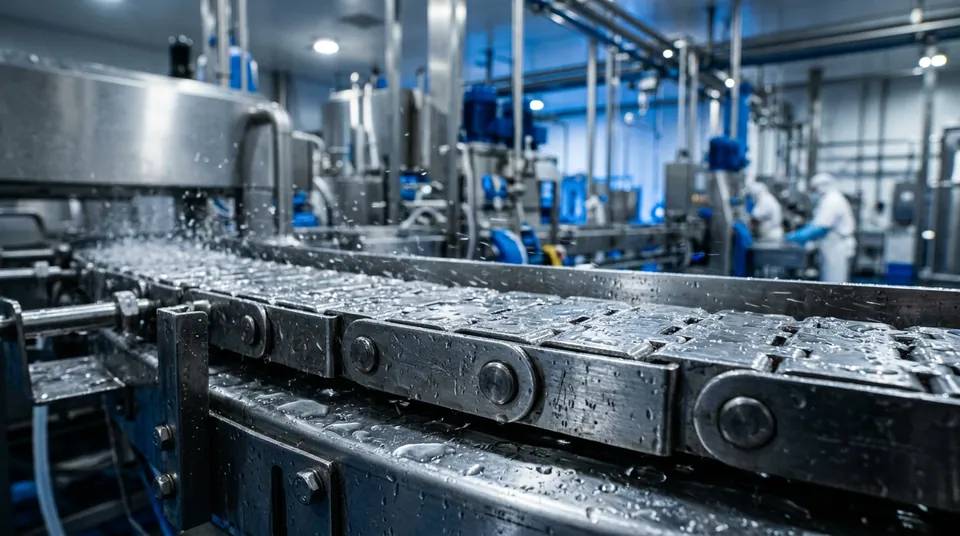

Stainless steel modular belt conveyors provide a superior alternative to traditional fabric belts in hygienic environments, offering a high open-surface area (up to 40% for drainage) and material integrity that withstands caustic cleaning agents (pH 2–12) at temperatures up to 200°C. In the food and pharmaceutical sectors, these systems are essential for compliance with EHEDG (European Hygienic Engineering & Design Group) guidelines, as they eliminate the risk of delamination and fungal growth inherent in multi-ply fabric constructions.

The Engineering Necessity of Stainless Steel in Hygiene

In high-risk production zones, such as raw meat processing or ready-to-eat (RTE) packaging, the choice of conveyor material is the first line of defense against microbial contamination. While plastic modular belts (typically POM or PP) are common, stainless steel modular belts—specifically those constructed from 304 or 316L grade alloys—are required when the application involves extreme temperatures, heavy impact loads, or aggressive sanitation chemicals.

Unlike solid wire mesh belts, modular stainless steel configurations use interlocking links held together by secondary rods. This design provides the mechanical strength of a metal belt with the tracked stability of a modular system. According to ISO 14159:2002, hygiene-critical machinery must be designed to prevent the accumulation of organic matter; the open-link structure of these modules allows high-pressure water and foam to penetrate the hinge points during a Clean-in-Place (CIP) cycle.

Material Selection: 304 vs. 316L

• Grade 304: The standard for most food processing. It offers excellent corrosion resistance to organic acids and most sanitizers.
• Grade 316L: Contains molybdenum, providing superior resistance to chlorides (salt) and sulfuric acids. This is the "Marine Grade" standard for brine-heavy environments like seafood processing or pharmaceutical cleanrooms.

Comparing Modular Belt Materials for Wash-Down

When designing a modular system, engineers must weigh the benefits of stainless steel against high-performance plastics. While plastic is lighter and often cheaper, it cannot match the thermal or abrasive resistance of steel.

Feature	Stainless Steel (304/316)	Polypropylene (PP)	Acetal (POM)
Max Temp (Continuous)	+400°C	+105°C	+90°C
Chemical Resistance	Excellent (Wide pH range)	High	Moderate (Acid sensitive)
Impact Resistance	Very High	Moderate	High
Standard Compliance	FDA & EHEDG	FDA	FDA
Cleaning Method	High-Pressure Steam/Caustic	Low-Pressure Foam	Moderate Wash-down
Elasticity	Low (Minimal Stretch)	High (Requires tensioning)	Moderate

Design Features for Rapid Sanitation

A truly hygienic modular system is more than just the belt material; the frame and drive components must also be engineered for wash-down. Easy Conveyors specializes in modular conveyor systems that integrate these hygienic principles, ensuring that support structures do not harbor "dead zones" where bacteria like Listeria can proliferate.

1. Open Frame Architecture

The conveyor frame should utilize rounded tubular members or "C-profile" open channels rather than enclosed hollow tubes. If hollow tubes are used, they must be fully seal-welded to prevent internal moisture ingress, a common cause of "ticking time bomb" contamination.

2. Drive System Integration: Drum Motors vs. Gearmotors

For hygienic wash-down environments, the drive system is a critical failure point. Traditional external gearmotors have cooling fins and oil seals that can trap debris.

• Drum Motors: These are the gold standard for hygiene. The motor, gearbox, and bearings are housed inside a hermetically sealed stainless steel shell, typically rated to IP69K (IEC 60529). This allows for direct high-pressure cleaning without the risk of electrical failure or lubricant leakage.
• VFD Soft-Start Tuning: When using stainless steel belts, the mass of the belt is significantly higher than plastic. Precise VFD soft-start tuning is necessary to prevent shock loading on the drive sprockets during startup.

3. Self-Draining Surfaces

Every horizontal surface on the conveyor must be pitched at an angle of at least 3 degrees to ensure water runoff. Stagnant water is a primary vector for microbial growth. This includes the undersides of wear strips and the mounting brackets for sensors and pneumatic actuators.

Performance Limits and Sizing Rules of Thumb

Designing with stainless steel modular belts requires a shift in engineering calculations compared to lightweight plastic systems.

• Friction and Drag: The coefficient of friction for stainless steel links on UHMW-PE wear strips is generally higher than plastic-on-plastic. Engineers should use a design factor of 0.25 to 0.35 when calculating required motor torque.
• Thermal Expansion: While steel expands less than plastic, in high-temp ovens or cryogenic freezers (down to -40°C), the frame and belt must have compatible expansion coefficients, or the design must include "take-up" rollers with sufficient travel.
• Pitch Selection: A smaller pitch (e.g., 25mm) allows for tighter transfers between conveyors, reducing product damage. A larger pitch (50mm+) is typically more robust and easier to clean.

Maintenance and Common Failure Modes

Even the most robust stainless steel system requires a structured preventative maintenance schedule.

1. Sprocket Alignment: Misaligned sprockets will cause uneven wear on the link hinges, leading to "metal-on-metal" galling.
2. Caustic Stress Cracking: If the belt is not properly rinsed after using chlorinated cleaners, residual chemicals can cause stress corrosion cracking in 304-grade steel. Always follow the FDA guidelines for food contact surface sanitation and rinse cycles.
3. Wear Strip Integrity: The plastic wear strips (often blue for visibility) should be inspected monthly. If the wear strip thins too much, the belt will begin to abrade the stainless steel frame, creating non-hygienic scratches and metal filings.

By incorporating hygienic wash-down design principles from the outset, facilities can reduce sanitation time by up to 30%, significantly increasing overall equipment effectiveness (OEE). For systems requiring complex routing or multi-lane sortation, consulting with an engineering partner like Easy Conveyors ensures that the modular components are compatible with the rigorous demands of the food and pharma industries.

Regulatory and Safety Standards

Compliance isn't just about food safety; it's also about operator protection. In the EU, conveyors must adhere to EN 1672-2, which specifically addresses "Food Processing Machinery – Basic Concepts – Hygiene Requirements." This standard mandates that all surfaces must be accessible for cleaning and that there are no sharp internal angles (minimum radii of 3mm-6mm) where material can get stuck.

Furthermore, any stainless steel modular system sold in the US should meet NEMA 4X standards for electrical enclosures, ensuring they are protected against windblown dust, rain, and hose-directed water. Proper drum motor selection often facilitates meeting these standards by reducing the number of external components requiring shielding.
