Engineering Excellence in Shaftless Screw Conveyors for Sludge Handling

Shaftless screw conveyors for sludge handling are specialized bulk material handling systems designed to transport viscous, sticky, or irregular solids without the use of a central internal shaft. By utilizing a heavy-duty spiral that rotates within a lined U-trough, these systems eliminate the risk of material buildup—a critical advantage when processing municipal waste, chemical sludge, or dewatered biosolids.

The Engineering Logic Behind Shaftless Design

In traditional screw conveyors, the central pipe (shaft) acts as both the structural support for the flights and the point of connection for intermediate bearings. While effective for dry, free-flowing grains or powders, this design fails when confronted with "difficult" materials. Sludge is inherently cohesive; it sticks to internal components and tends to wrap around the central shaft, leading to "bridging" and catastrophic blockages.

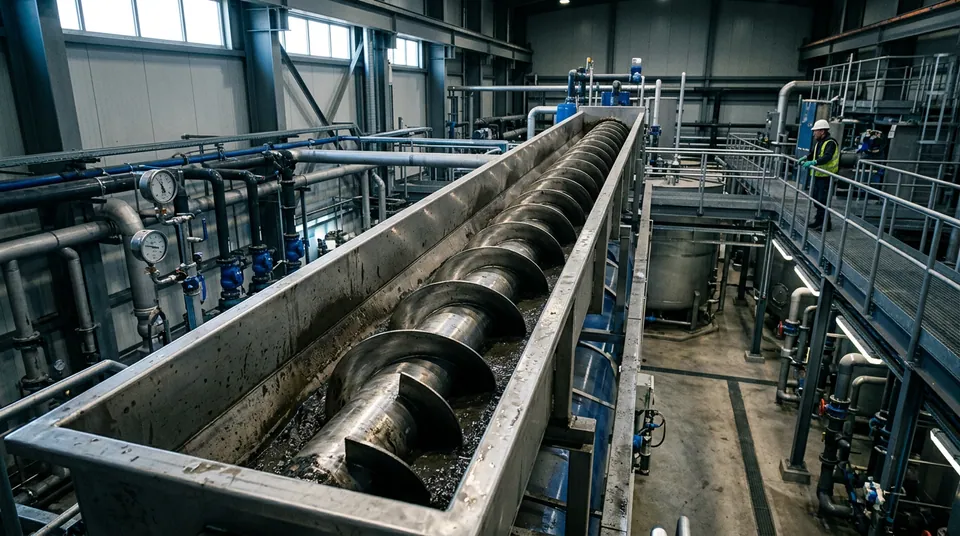

The shaftless screw, often referred to as a "spiral," is a thick, ribbon-like component typically manufactured from high-strength carbon steel or stainless steel. Because there is no central shaft, the entire cross-sectional area of the trough is available for material transport. This allows for higher filling rates and the ability to move large chunks or stringy materials that would otherwise clog a conventional system.

Key Takeaways

• Zero Clog Potential: The absence of a center shaft prevents "hairballing" or bridging of fibrous materials.
• High Torque Resilience: Shaftless spirals are designed to handle high-torque start-ups common in dewatered sludge applications.
• Reduced Maintenance: Eliminating intermediate and end bearings within the material flow zonereduces common failure points.
• Compact Footprint: High fill rates allow for smaller trough profiles while maintaining throughput.
• Odor Control: Fully enclosed troughs ensure gas-tight operations, critical for environmental and safety compliance.

Technical Specifications and Material Selection

When engineering a shaftless screw conveyor for sludge handling, the choice of materials is dictated by the chemical composition and moisture content of the sludge.

Spiral Metallurgy

The spiral is the heart of the machine. In sludge handling, it must resist both abrasion and torsional stress. Common specifications include:

• High-Strength Carbon Steel: Often used for municipal sludge where acidity is low.
• AISI 304/316 Stainless Steel: Preferred for chemical processing or food-grade sludge where corrosion resistance is paramount.
• Hardness: Spirals are often cold-formed to increase work hardness, sometimes reaching 200-250 BHN (Brinell Hardness Number).

Trough Liners

Since the shaftless spiral "rides" directly on the bottom of the trough, a low-friction, high-wear liner is required.

1. UHMW-PE (Ultra-High Molecular Weight Polyethylene): The industry standard. It offers an extremely low coefficient of friction and high impact strength.
2. Multilayer Liners: Often feature a colored "wear indicator" layer. When the top color wears away, maintenance teams receive a visual cue to replace the liner before the metal trough is damaged.
3. High-Temperature Options: If the sludge is coming directly from a heat-treatment process (e.g., thermal hydrolysis), specialized ceramic or metallic liners may be required.

Sizing and Performance Metrics

Designers must look beyond just "tonnes per hour." The physical properties of sludge—its dry solids (DS) percentage and viscosity—dictate the screw's RPM and trough size.

Sludge Type	DS Percentage	Recommended Fill Rate	Typical RPM
Liquid/Thickened Sludge	3-8%	30-45%	40-60
Dewatered Biosolids	20-35%	25-35%	20-40
Dried Pellets	>90%	15-25%	15-30

Operating at lower RPMs is generally preferred for sludge to minimize liner wear and prevent the material from "spinning" with the screw rather than moving forward. High torque motors, often meeting IE3 Premium Efficiency standards, are paired with heavy-duty gearboxes to handle the high-resistance start-ups typical after a system shutdown.

Maintenance and Failure Modes

While shaftless conveyors are marketed as low-maintenance, they are not zero-maintenance. Understanding the most common failure modes is essential for plant uptime.

Liner Wear

The most common task is the periodic replacement of the trough liner. In a 24/7 municipal operation, a UHMW-PE liner may last 2–5 years depending on the grit content of the sludge. Failure to replace the liner will result in the spiral grinding through the trough casing, leading to leaks and structural failure.

Spiral Elongation

Under extreme torque loads, the spiral can act like a giant spring. If the material is too dense or the discharge is blocked, the spiral may elongate, causing it to rub against the end plates or the drive assembly. Monitoring motor amperage is a key diagnostic tool; a sudden spike usually indicates a physical obstruction or excessive material density.

Drive Assembly Alignment

The coupling between the gear motor and the spiral is the only point of support. This "cantilevered" load puts significant stress on the drive shaft bearings. Proper alignment and the use of heavy-duty thrust bearings are critical to prevent premature seal failure and grease leakage into the sludge.

Integration with Broader Automation

In modern industrial facilities, sludge handling is rarely a siloed process. It is the vital link between dewatering (centrifuges, belt presses) and disposal (incinerators, trucks). For manufacturers integrating these heavy-duty units with lighter downstream packaging or transport systems, Easy Conveyors provides the modular expertise needed to bridge the gap between primary process equipment and secondary handling or sortation.

Sensor Integration for Smart Handling

• Variable Frequency Drives (VFDs): Essential for matching the conveyor speed to the output of a centrifuge.
• Zero-Speed Switches: Detects if the spiral has stopped turning (e.g., due to a sheared bolt or gearbox failure) even if the motor is still running.
• Ultrasonic Level Sensors: Placed at the discharge chute to prevent downstream backups.

Environmental and Safety Compliance

Handling sludge involves managing biohazards and odors. Shaftless screw conveyors are inherently superior here because they are easily sealed.

• Odor Containment: Gasketed covers with bolted clamps ensure that Hydrogen Sulfide (H2S) and other gases are contained and can be vented to a scrubber.
• ATEX/Zone Ratings: In environments where dried sludge dust can be explosive, conveyors must be manufactured to ATEX standards (e.g., Zone 21 or 22). This involves using non-sparking liners and explosion-proof motors.
• Washdown Capability: Most systems feature IP66 or IP69K rated components to allow for high-pressure cleaning, which is mandatory in food-grade or pharmaceutical sludge applications.

Selecting the Right Configuration: Horizontal vs. Vertical

Shaftless conveyors are versatile in geometry.

• Horizontal and Inclined: Most common. Inclines up to 30 degrees are manageable without significant loss of efficiency.
• Vertical (High Incline): For inclines above 30 degrees, "pugging" or centrifugal force is required. Vertical shaftless conveyors can lift sludge several meters in a small footprint, but they require precise speed control and are more sensitive to changes in sludge consistency.

In summary, the transition from shafted to shaftless technology represents a major shift in reliability for sludge handling. By removing the center pipe, engineers solve the most persistent problem in waste processing: the tendency of viscous solids to bind and block. When designed with high-quality liners, work-hardened spirals, and robust automation controls, these systems can operate for years with minimal intervention, keeping plant operations clean and efficient.
