Incline Conveyors with Cleated Belts for Bulk Goods: Engineering Guide

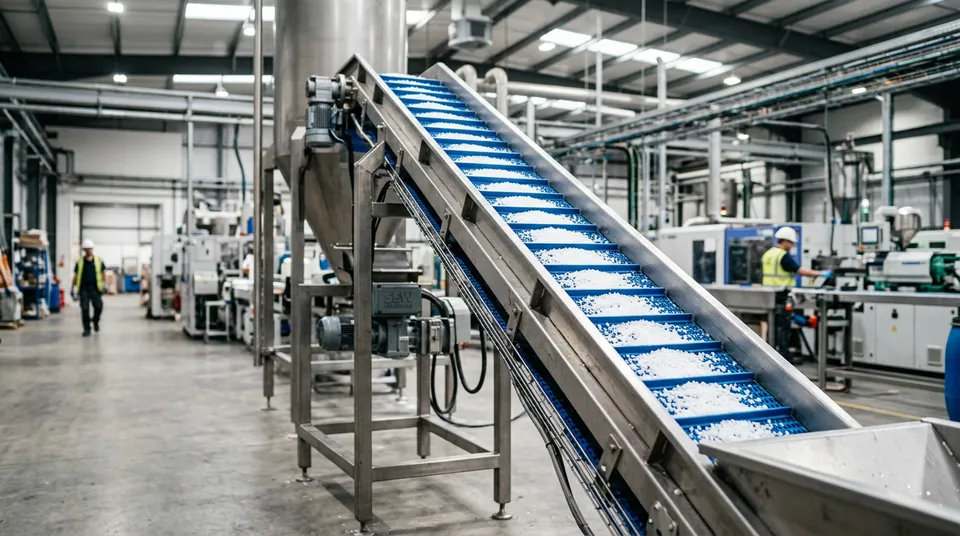

Incline conveyors with cleated belts are essential for elevating bulk goods at angles ranging from 20° to 90°, typically requiring cleats (flights) spaced at intervals of 2 to 4 times the maximum product size to prevent material backflow. By integrating specialized belt geometries and high-friction materials, these systems allow for a reduced equipment footprint while maintaining high throughput in food processing, recycling, and packaging environments.

The Engineering Logic of Cleated Belt Inclines

When conveying bulk materials like grains, plastic pellets, or small mechanical components, gravity becomes the primary adversary once the angle of inclination exceeds the material's natural angle of repose. For most dry bulk goods, this limit is reached between 15° and 25°. Beyond this threshold, a standard flat belt will suffer from "rollback," where the product slides backward, leading to erratic dosing, product damage, or total system blockage.

Cleated belts, often referred to as "flighted belts," solve this by creating mechanical pockets or buckets on the belt surface. The selection of cleat height and spacing is governed by the volumetric capacity required and the physical dimensions of the bulk product. As a rule of thumb, the cleat height should be at least 50% of the maximum particle diameter to ensure stable transport.

Material Selection: POM vs. PVC vs. PU

The choice of belt material is critical for durability and compliance with international standards such as FDA 21 CFR for food contact. Modular plastic belts, often made of Polyoxymethylene (POM) or Polypropylene (PP), offer superior drainage and are easily repairable by replacing individual links.

Feature	PVC (Fabric)	PU (Polyurethane)	POM (Modular)
Max Incline Angle	35° (High friction)	40°	Up to 90° (with side walls)
Chemical Resistance	Moderate	High	Excellent
Temperature Range	-10°C to +80°C	-20°C to +100°C	-40°C to +90°C
Hygiene Rating	Standard	High (Hygienic)	Very High (EHEDG style)
Load Capacity	Medium	Medium-High	High

Cleat Geometry and Configuration

Cleats are not a one-size-fits-all component. Their design must be matched to the specific flow characteristics of the bulk material:

1. T-Cleats (Vertical): The most common variety, suitable for general-purpose inclines up to 45°. They provide a simple barrier for stable products like packaged goods or large-diameter bulk items.
2. C-Cleats (Scoop): These have a curved profile that acts like a shovel. They are ideal for steep inclines (up to 60°) because they cradle the product, preventing it from tumbling over the top of the cleat.
3. Super-S-Cleats (Corrugated Sidewalls): Used in "pocket conveyors," these combine tall cleats with flexible, pleated sidewalls. This configuration allows for vertical (90°) transport, effectively replacing bucket elevators in tight footprints.

For manufacturers looking to integrate these components into a broader automation strategy, Easy Conveyors provides modular solutions that simplify the transition from horizontal to inclined sections, ensuring that the cleated belt interacts seamlessly with drive sprockets and return rollers.

Motor Sizing and Drive Dynamics

Incline conveyors require significan

tly higher torque than horizontal systems due to the constant gravitational load. When sizing the drive, engineers must calculate the "Lift Load" in addition to the friction load. The use of high-efficiency motors, such as IE3 or IE4 classes, is highly recommended to offset the energy demands of continuous lifting.

Furthermore, a "backstop" or electromagnetic brake is mandatory for any incline exceeding 15°. In the event of a power failure or emergency stop, the brake prevents the loaded belt from reversing under the weight of the bulk material, which could otherwise cause catastrophic mechanical failure or safety hazards as defined by OSHA 1910.212.

Design Considerations for Bulk Goods

When designing for bulk goods, three factors often dictate the success of the installation:

• Infeed Method: Bulk goods should be fed onto the incline at a controlled rate. An uncontrolled surge can overwhelm the cleats, causing material to spill over the sides or bridge between the infeed hopper and the belt.
• Transition Zones: The transition from a horizontal to an inclined plane (the "gooseneck" or "nose-over") is where most tracking issues occur. Using large-diameter rollers or specialized modular radius links helps maintain belt tension and prevents cleat interference.
• Cleat Pitch: If the pitch (distance between cleats) is too large, the material will shift during the climb, leading to uneven discharge. If it is too small, the belt becomes difficult to clean and may not allow large particles to settle into the pockets.

Maintenance and Troubleshooting

Cleated belts are subject to unique wear patterns. The point where the cleat is thermally welded or mechanically fastened to the base belt is a stress concentrator. Regular inspections should focus on "cleat rooting"—checking for cracks at the base of the flight.

For modular systems, check the hinge pins for elongation. In heavy-duty bulk applications, abrasive dust can act as sandpaper between the pins and the links, leading to "belt stretch." Monitoring the take-up unit's travel distance is a reliable way to predict when a section of the belt needs replacement. Proper drum motor selection and ensuring correct VFD soft-start tuning can mitigate the initial shock loads that often lead to cleat detachment.

Environmental and Hygienic Standards

In food-grade applications, the "cleanability" of the cleat is paramount. Standard T-cleats can have sharp 90-degree angles where bacteria can thrive. Modern EHEDG-compliant designs feature radiused corners (minimum 3mm fillets) to facilitate wash-down procedures. Using antimicrobial materials like those provided by Habasit or Intralox can further reduce the risk of cross-contamination in bulk food handling.

Conclusion

Incline conveyors with cleated belts represent a high-density solution for vertical material flow. By selecting the correct cleat profile, belt material, and drive system, facilities can maximize their floor space while ensuring a consistent, damage-free flow of bulk goods. Whether moving plastic resin in an automotive plant or frozen peas in a packing facility, the physics of the incline remain the same: overcome gravity with precision-engineered mechanical barriers.
