Hygienic Conveyor Bearings and Shaft Seals: Engineering for Food Safety
Hygienic conveyor bearings and shaft seals must meet IP69K standards to ensure food safety. Learn how to select materials and sealing systems for washdown environments.
In hygienic material handling, conveyor bearings and shaft seals must prevent bacterial ingress and lubricant leakage, typically requiring 3-A or EHEDG-certified components with an IP69K rating to withstand high-pressure washdown at 80°C and 100 bar. These specialized components eliminate the "dead zones" found in traditional cast-iron housings, where organic matter can accumulate and breed pathogens.
The Critical Role of Hygienic Components
In the food processing, pharmaceutical, and biotechnology sectors, the conveyor system is often the most significant risk factor for cross-contamination. Traditional bearing units, while mechanically robust, are often designed with deep crevices, porous surfaces, and grease nipples that are impossible to sanitize fully. When these systems are subjected to the rigorous cleaning protocols defined by EHEDG (European Hygienic Engineering & Design Group), standard components often fail—not just mechanically, but biologically.
Modern hygienic conveyor design relies on three pillars: material choice, surface finish, and sealing integrity. By moving away from standard chrome steel and cast iron toward high-grade stainless steel (AISI 304 or 316) and specialized polymers like POM (polyoxymethylene) or antimicrobial-treated plastics, engineers can create systems that are as safe as they are efficient.
Selecting Bearing Units for Washdown Environments
Standard bearings often rely on contact seals that degrade under chemical exposure. In a hygienic context, the bearing housing itself is as important as the rolling elements.
Material Selection: Stainless Steel vs. Thermoplastic

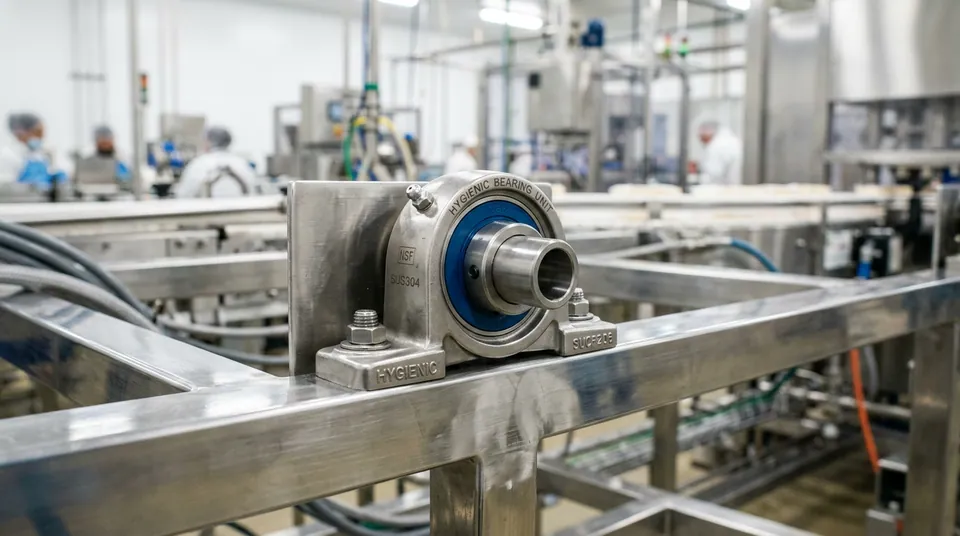

For most food-grade applications, engineers choose between full stainless steel housings and reinforced thermoplastic units.
- Stainless Steel (AISI 316): Offers the highest resistance to acidic and alkaline cleaning agents. It is the gold standard for high-temperature washdown environments.
- Thermoplastic Housings: Often lighter and more cost-effective, these units are molded without cavities. High-end versions incorporate antimicrobial additives that inhibit the growth of mold and bacteria on the surface.
Comparison of Hygienic Bearing Features
| Feature | Standard Industrial Bearing | Hygienic/Washdown Bearing |
|---|---|---|
| Housing Material | Cast Iron (Porous) | Smooth Stainless or PBT Plastic |
| Lubrication | Standard Mineral Grease | Food-grade (H1) Grease |
| Sealing System | Single Lip Seal | Triple-Lip or Labyrinth + End Cap |
| IP Rating | IP65 | IP69K (ISO 20653) |
| Re-greasing | Required (Grease Nipple) | Lubricated for Life (Solid Lube) |
Advanced Shaft Sealing Technologies
The shaft-to-housing interface is the most vulnerable point in any conveyor drive or idler end. If the seal fails, cleaning fluids can enter the bearing, washing away lubrication and leading to premature failure. Conversely, lubricant can leak out and contaminate the product.
The Rise of Solid Lubricant
To solve the leakage issue, many engineers are adopting "solid oil" or solid lubricant technology. This involves a polymer matrix saturated with lubricating oil that completely fills the internal space of the bearing. Because there is no free-flowing oil, the risk of leakage is virtually eliminated, and there is no room for moisture to condense inside the bearing during cooling cycles after a hot washdown.
Multi-Stage Sealing Systems
High-performance hygienic seals often use a "flingers" or "slingers" design combined with secondary and tertiary lips. Interroll and other industry leaders emphasize that a centrifugal flinger can deflect 90% of direct spray before it even reaches the primary seal lip. For the highest levels of protection, "fully enclosed" units utilize bolt-on end covers with internal O-rings to create a hermetic barrier.
Easy Conveyors stocks the conveyor components discussed here — ready to ship across Europe.
Integration with Modular Systems
When designing a complete line, components must work in harmony. For instance, Easy Conveyors provides modular conveyor platforms that are specifically engineered to accommodate these specialized hygienic bearing units. By using standardized mounting patterns, maintenance teams can quickly swap out worn components without modifying the conveyor frame.
Proper integration also involves considering the hygienic wash-down design of the entire drive assembly. This includes ensuring that the motor-to-shaft connection is either fully enclosed or designed with sufficient "stand-off" distance to allow cleaning spray to reach all surfaces.
Common Failure Modes and Troubleshooting
Despite their robust ratings, hygienic bearings and seals can fail if misapplied.
- Chemical Incompatibility: Using a chlorine-based sanitizer on a seal material intended only for mild detergents will cause the elastomer to embrittle and crack.
- Thermal Shock: Rapidly cooling a bearing housing with cold water immediately after a high-temperature run can create a vacuum, literally "sucking" moisture past the seals.
- Over-Greasing: In units that are not lubricated for life, over-pressurizing the housing with a grease gun can blow out the seals, creating an immediate sanitation hazard.
To prevent these issues, it is recommended to transition to "lubricated for life" units whenever possible. This aligns with modern automation components trends that prioritize reduced maintenance intervals and higher OEE (Overall Equipment Effectiveness).
Engineering Standards and Compliance
Compliance is not optional in hygienic material handling. In the United States, the FDA (Food and Drug Administration) regulates the materials that can come into contact with food. In Europe, the CEN (European Committee for Standardization) provides the framework for machinery safety and hygiene (EN 1672-2).
Key standards to reference during procurement:
- ISO 14159: Safety of machinery — Hygiene requirements for the design of machinery.
- DIN EN 1672-2: Food processing machinery - Basic concepts - Part 2: Hygiene requirements.
- 3-A Sanitary Standards: Specifically for the dairy and liquid food industries.
Summary of Best Practices
When specifying components for a new hygienic conveyor or retrofitting an existing line, prioritize "design for cleaning." This means selecting bearing units with smooth, rounded geometries and no exposed threads. Ensure that all seals are rated for the specific chemistry of your CIP (Clean-In-Place) or COP (Clean-Out-of-Place) cycles. Finally, document the IP rating and material certifications for every component to ensure a smooth audit process by health and safety regulators. Considerations for VFD soft-start tuning should also be made to reduce mechanical stress on these high-precision seals during startup.
Frequently Asked Questions
What does IP69K mean for conveyor bearings?
IP69K is a protection rating under ISO 20653 indicating a component can withstand high-pressure (100 bar) and high-temperature (80°C) water jets. It is the standard for heavy washdown environments in food processing.
Why is solid lubricant better than grease in food zones?
Solid oil is a polymer matrix saturated with lubricant that fills the entire bearing cavity. It prevents moisture ingress and eliminates the risk of grease leakage, making it ideal for hygienic applications.
Can I use thermoplastic bearing housings in high-temp washdowns?
Thermoplastic (PBT) housings are corrosion-proof and often include antimicrobial additives. However, 316 stainless steel is preferred for extreme temperatures or where mechanical impact from heavy tools is likely.
What is the benefit of a triple-lip seal?
Triple-lip seals provide three layers of protection against contaminants, whereas standard seals have one. In washdown areas, this redundancy prevents water from reaching the rolling elements.
Do hygienic bearings require regular re-greasing?
While some are re-greasable, the trend is moving toward 'lubricated for life' units. Re-greasing introduces the risk of seal blowout and contamination from the grease nipple itself.
