Optimizing Case and Tote Conveyors for 3PL Warehouse Efficiency

Modern 3PL warehouses require case and tote conveyors capable of handling throughput rates exceeding 3,000 units per hour while maintaining 99.9% uptime. To achieve this, modular 24V DC roller systems (MDR) have become the industry standard, offering energy savings of up to 50% compared to traditional AC-driven systems by utilizing "run-on-demand" logic.

The Shift Toward Modular Case and Tote Conveyance

The logistics landscape for Third-Party Logistics (3PL) providers has shifted from pallet-level distribution to high-frequency, small-parcel fulfillment. This transition necessitates a conveyor infrastructure that is both flexible and scalable. Case and tote conveyors serve as the "circulatory system" of these facilities, moving plastic totes, cardboard cartons, and polybags between picking zones, packing stations, and shipping docks.

Unlike fixed-path legacy systems, modern solutions focus on modularity. Engineering partners like Easy Conveyors provide the standardized modules—such as straights, curves, and diverts—that allow 3PLs to reconfigure their layouts as client contracts and seasonal demands change.

Technical Comparison: MDR vs. AC Motor Driven Systems

When selecting a conveyor for 3PL operations, the primary decision involves the drive technology. Motorized Driven Roller (MDR) technology has largely supplanted AC gearmotors in tote handling due to its decentralized control and safety profiles.

Feature	24V/48V DC (MDR)	AC Gearmotor (Centralized)
Efficiency	High (Run-on-demand)	Constant (Continuous run)
Noise Level	< 60 dB	> 75 dB
Maintenance	Single roller replacement	Belt/Chain tensioning & gearbox oil
Safety	Low voltage, low torque	High torque (requires guarding)
Throughput	Up to 4,000 units/hour	6,000+ units/hour (High speed)

Key Components of Case and Tote Systems

A robust 3PL conveyor system is more than just rollers; it is a combination of specialized modules designed for specific logistical functions.

1. Zero Pressure Accumulation (ZPA)

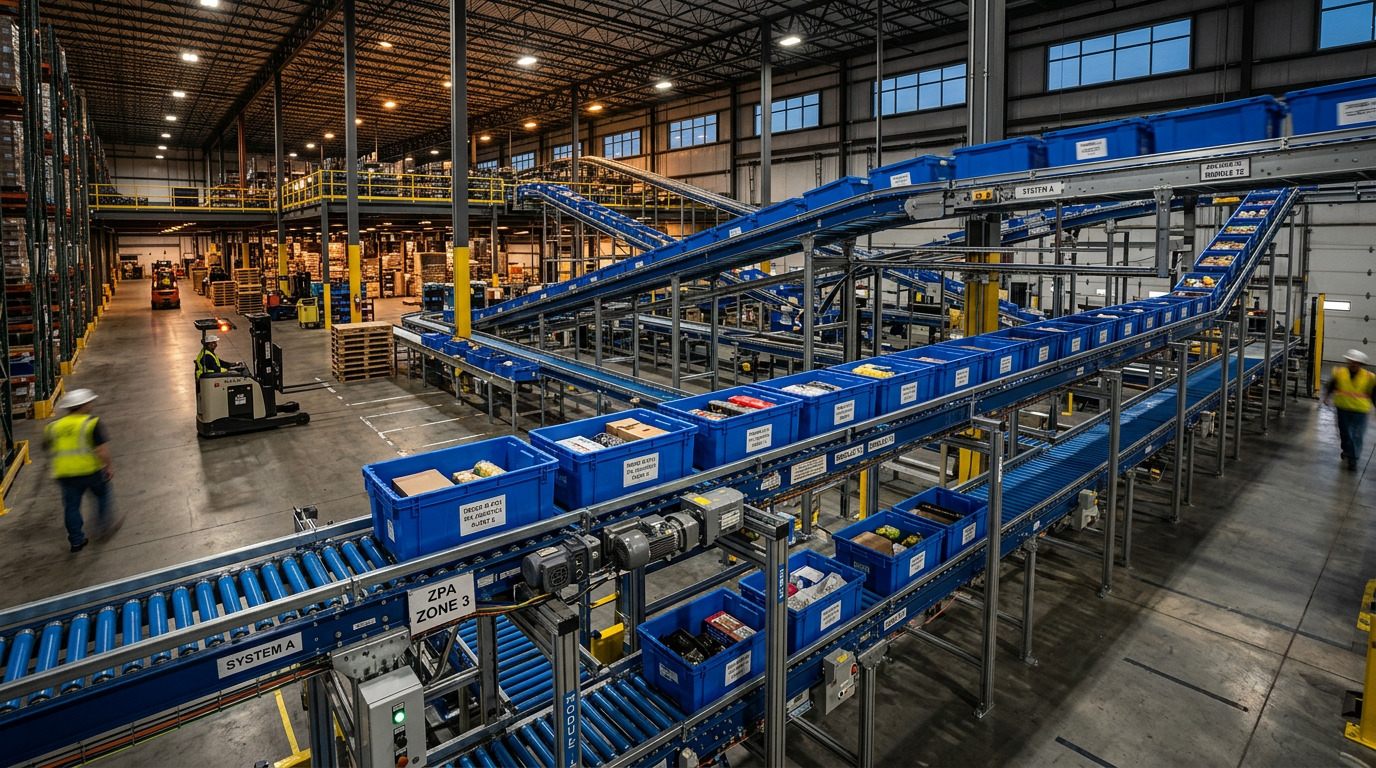

ZPA is the cornerstone of tote conveyance. It prevents products from touching each other, which is critical for preventing damage to fragile contents or "shingling" of light packages. ZPA logic uses photo-eye sensors to detect the presence of a tote in a zone and stops the motor if the downstream zone is occupied. This reduces wear and tear and significantly lowers energy consumption.

2. High-Speed Sortation and Diverting

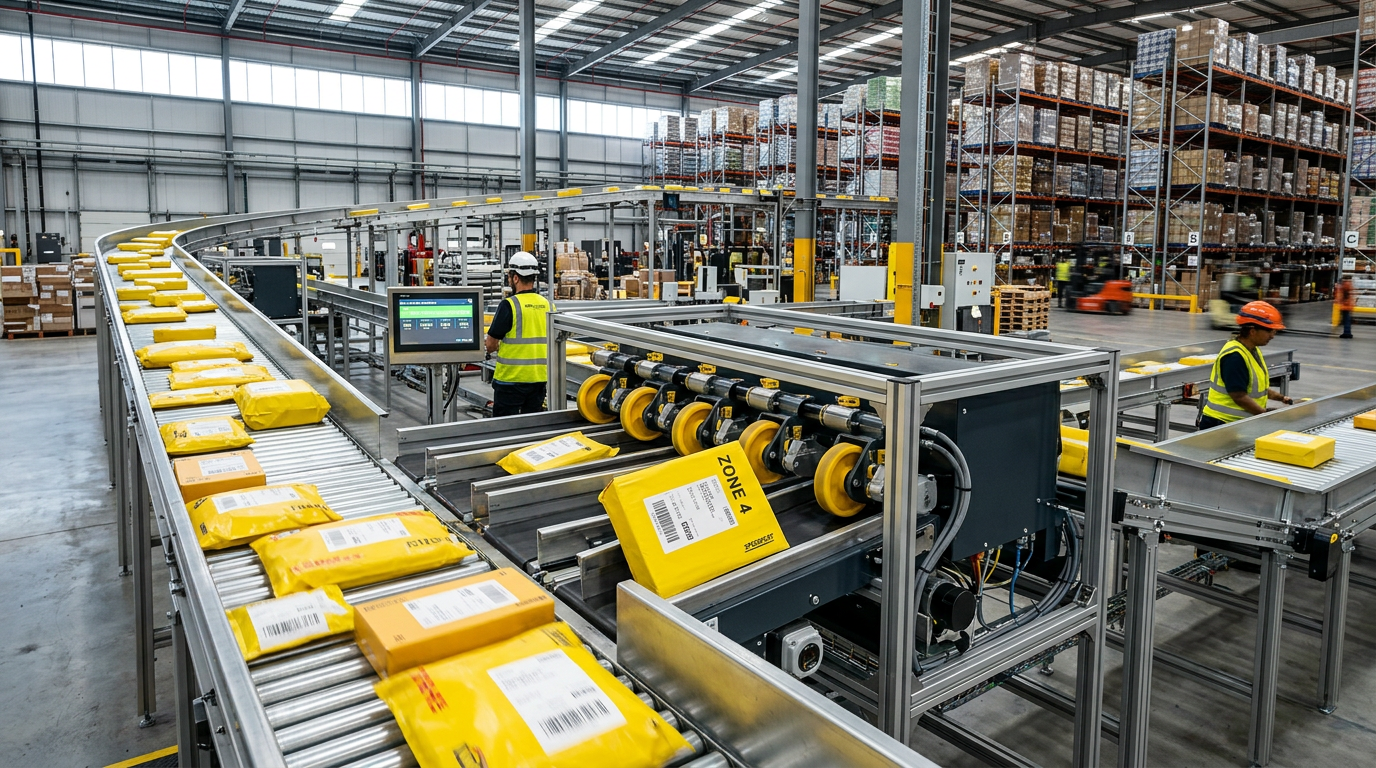

In 3PL environments, a single conveyor line might carry orders for dozens of different carriers or destinations. Narrow belt sorters and "pop-up" wheel diverts are essential for high-speed sortation. These modules must interface with Warehouse Management Systems (WMS) via industrial protocols like EtherNet/IP or PROFINET to ensure totes are routed with millisecond precision.

3. Vertical Conveyance

To maximize warehouse footprint, many 3PLs utilize mezzanine levels. Continuous vertical conveyors or spiral elevators are used to move totes between levels. Spiral conveyors are often preferred for their small footprint and ability to m

aintain a continuous flow without the "stop-start" latency of traditional reciprocating lifts.

Design Considerations for High-Throughput 3PLs

Engineers must account for several variables when sizing a case conveyor system:

• Tote Bottom Surface: The interface between the tote and the roller is critical. Ribbed or "waffle-bottom" totes can cause vibration and noise if the roller pitch (the distance between rollers) is not correctly calculated. A general rule of thumb is to have at least three rollers under the smallest load at all times.
• Incline and Decline Limits: For standard roller conveyors, the maximum incline is typically 3 to 4 degrees before product slippage occurs. For steeper angles, high-friction rollers or "grip top" belts are required.
• VFD Soft-Start Tuning: For sections powered by AC motors, proper VFD soft-start tuning is essential to prevent jerky movements that could tip tall, narrow cases.
• Environmental Ratings: While most 3PLs are dry environments, some e-commerce fulfillment involves liquids or chemicals requiring IP54 or higher protection ratings (IEC 60529).

Integration with Automation

The rise of Autonomous Mobile Robots (AMRs) has not made conveyors obsolete; rather, it has changed their role. Conveyors now act as the high-speed arteries, while AMRs handle the "capillary" movement to specific pick faces. This requires "bridge" modules—conveyor sections specifically designed to hand off totes to a robotic top-module.

Ensuring the system meets safety standards is paramount. All conveyor installations in North America must comply with OSHA 1910.212 regarding general requirements for all machines, including point-of-operation guarding and emergency stops.

Maintenance and Lifecycle Management

To maintain 99.9% uptime, 3PLs are moving toward predictive maintenance. By monitoring the current draw of MDR rollers, control systems can identify a bearing failure before the roller seizes. Standardized components allow for a "hot-swap" approach where a failed motor or sensor can be replaced in under five minutes without shutting down the entire line. Proper drum motor selection for heavy-duty incline sections ensures that the most stressed parts of the system are over-engineered for the application.

Future Trends in Tote Conveyance

We are seeing a move toward 48V DC systems, which allow for longer conveyor runs with fewer power supplies and higher torque for heavier totes (up to 50kg). Additionally, the use of AI-driven "slotting" logic is allowing conveyors to dynamically adjust their speed based on real-time warehouse congestion, further optimizing the balance between throughput and energy use. For those designing new facilities, focusing on hygienic wash-down design is becoming increasingly common in 3PLs that handle "white-label" food or pharmaceutical products, even if they are in sealed secondary packaging.
