Expert VFD Tuning and Soft-Start Strategies for Modular Conveyors

Optimal VFD tuning for modular conveyors typically involves setting acceleration and deceleration ramps between 1.5 and 3.0 seconds and utilizing S-curve profiles to reduce mechanical jerk by up to 40%. By implementing precise VFD parameters, operators can achieve IE3 or IE4 motor efficiency while significantly extending the lifecycle of plastic modular belts and drive sprockets.

The Role of Variable Frequency Drives in Modern Conveying

In the era of Industry 4.0, a Variable Frequency Drive (VFD) is no longer just a speed controller; it is a critical diagnostic tool and high-precision governor of mechanical health. For modular conveyors—which rely on the positive engagement between sprockets and plastic belts—the way torque is applied during start-up determines whether a system lasts five years or five months.

Improperly tuned VFDs lead to "chordal action" amplification, belt surging, and premature tooth wear. Conversely, a well-tuned system ensures smooth transitions, energy savings, and the ability to integrate seamlessly with wider plant automation ecosystems.

Soft-Start Strategies: Beyond Linear Ramping

While a basic "soft-start" might simply imply a slow ramp-up from 0Hz to 50Hz, technical excellence requires a more nuanced approach. Linear ramps often fail to account for the static friction (stiction) inherent in modular belts, especially those with high load-to-surface-area ratios.

1. S-Curve Profiles

The S-curve is the gold standard for modular systems. Unlike a linear ramp, which has an instantaneous change in acceleration at the start and end of the ramp, the S-curve rounds off these corners. This minimizes "jerk" (the rate of change of acceleration), which is the primary cause of product tipping and belt vibration. On a modular conveyor, this prevents the "whiplash" effect where the slack side of the belt creates a wave that travels back to the drive end.

2. Torque Boosting and Flux Vector Control

Standard V/f (Volts per Hertz) control often struggles at low frequencies because the motor cannot generate enough torque to overcome starting friction. Engineers should utilize Open-Loop Vector Control. This allows the VFD to provide higher starting torque at low speeds without overheating the motor, ensuring a smooth takeoff even when the conveyor is fully indexed with heavy product.

Critical Tuning Parameters for Modular Systems

When commissioning a modular system, several parameters must be calibrated to the specific belt material (e.g., POM vs. PP) and the load characteristics.

Parameter	Recommended Setting	Impact on System
Acceleration Time	1.5s - 3.5s	Reduces sprocket impact and material sliding.
Deceleration Time	1.0s - 2.5s	Prevents belt "piling" at the drive end.
S-Curve Time	20% - 40% of Ramp	Eliminates mechanical resonance and jerk.
Carrier Frequency	4kHz - 8kHz	Balances motor noise vs. heat generation in the VFD.
DC Injection Braking	Minimum (<0.5s)	Prevents coasting for precision indexing.

Advanced VFD Features: Load Sensing and Energy Savings

Modern VFDs offer "Automatic Energy Optimization" (AEO). When a modular conveyor i

s running at a constant speed but is only partially loaded, the VFD can reduce the output voltage while maintaining frequency. This reduces the magnetization current in the motor, potentially lowering energy consumption by 10-15% during idle periods.

Furthermore, integrating VFDs with the wider control architecture via PROFINET or EtherNet/IP allows for real-time monitoring of torque signatures. An unexpected rise in torque at a fixed speed is often the first indicator of a failing bearing or a misaligned belt module. Working with specialized partners like Easy Conveyors ensures that the drive packages are pre-configured to match the specific mechanical nuances of their modular frames and drive sprockets.

Troubleshooting Common Tuning Issues

Failure to tune the VFD correctly often manifests in three specific ways:

1. Over-Current Trips on Start: Usually caused by a ramp time that is too short or insufficient torque boost. Increase the acceleration time by 0.5s increments.
2. Product Tipping: Common in high-speed bottling or packaging. The "jerk" at the end of the acceleration ramp is too high; increase the S-curve rounding percentage.
3. Belt Surging (Slip-Stick): This often occurs in long conveyors. It is caused by the elastic energy of the belt being released. Reducing the VFD gain (Proportional Gain in the PID loop) can help dampen this oscillation.

Environmental Considerations: IP Ratings and Heat

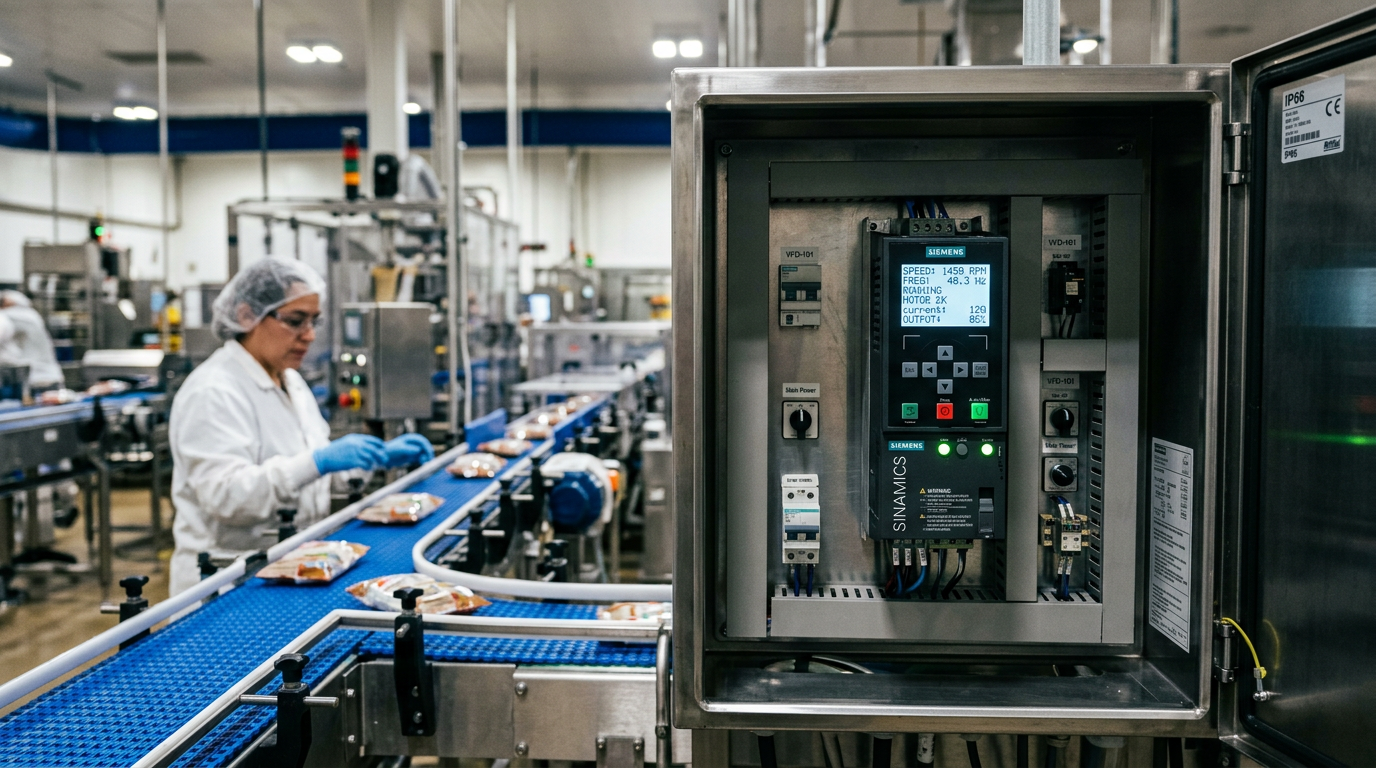

In the context of food-grade modular conveyors (using "hygienic wash-down design"), the VFD is often housed in a stainless-steel enclosure or mounted remotely in a MCC (Motor Control Center). If the VFD is mounted locally (Decentralized Drive), ensure it has a minimum rating of IP66 or IP69K.

Internal heat dissipation is critical. A VFD operating at 95% efficiency still generates significant heat. In wash-down environments where airflow involves moisture-heavy air, managing the internal temperature of the drive is as important as the tuning itself to prevent "nuisance tripping" due to over-temperature faults.

Integration with Automation Modules

For systems requiring precision, such as "drum motor selection" for space-constrained lines, the VFD must be tuned specifically for the internal cooling requirements of the drum motor. Unlike external gearmotors, drum motors rely on the belt to dissipate heat; therefore, running a drum motor at very low frequencies (below 15Hz) for extended periods requires a VFD capable of managing a de-rated thermal curve to prevent winding failure. Proper "VFD soft-start tuning" is essential here to balance torque requirements with thermal limits.

Summary of Best Practices

To maximize the ROI of a modular conveyor system, the VFD should be treated as a precision instrument. By moving away from basic factory defaults and implementing S-curve ramps, vector control, and load-aware energy optimization, facilities can achieve higher throughput with lower maintenance costs. Always verify that the VFD firmware is updated to support the latest industrial Ethernet protocols for better data visibility and predictive maintenance capabilities.
