Modular Plastic Belt Conveyors in High-Care Food Production: A Design Guide
Modular plastic belt conveyors reduce bacterial harborage by 40% in high-care food zones. Learn how to select materials and designs for FDA and EHEDG compliance.
In high-care food production environments, modular plastic belt conveyors are the industry standard for hygiene, typically reducing bacterial harborage by up to 40% compared to traditional fabric-reinforced belts due to their non-porous surfaces and open-hinge designs. These systems must comply with stringent regulations, including FDA 21 CFR for material safety and EHEDG Doc 8 for hygienic design principles to ensure consumer safety and operational efficiency.

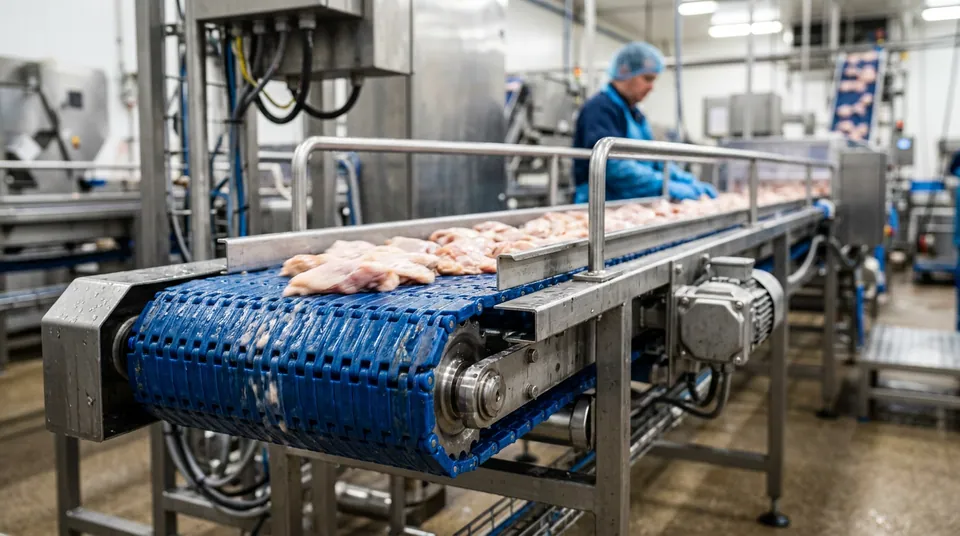

The Role of Modular Plastic Belts in High-Care Zones
High-care production zones—defined as areas where chilled, ready-to-eat (RTE) products are handled—demand equipment that minimizes the risk of microbial contamination. Unlike traditional PVC or PU belts, modular plastic belts are constructed from injection-molded modules linked by plastic hinge pins. This design offers a unique combination of mechanical durability and sanitation accessibility.
The primary materials used in these environments include Polypropylene (PP), Polyethylene (PE), and Acetal (POM). In high-care applications, the choice of material is critical. For instance, PE is preferred for low-temperature applications such as blast freezers, remaining ductile down to -73°C, whereas PP offers superior chemical resistance against aggressive alkaline cleaning agents.
Why Modular Designs Outperform Fabric Belts
- Elimination of Fraying: Fabric belts contain reinforcement layers that can fray, leading to physical contamination and "wicking," where moisture and bacteria are pulled into the belt core. Modular belts are solid plastic, eliminating this risk.
- Positive Drive Systems: Modular belts use sprockets rather than friction-based rollers. This ensures perfect tracking and prevents the belt-edge damage common in misaligned fabric systems.
- Sanitation Efficiency: Modern "Easy-to-Clean" (ETC) modular designs feature open hinges that allow cleaning fluids to penetrate the pivot pin area, where Listeria or Salmonella are most likely to colonize.
Hygienic Design Standards and Material Selection
Selecting the right modular conveyor requires adherence to international standards. The EHEDG (European Hygienic Engineering & Design Group) provides guidelines that dictate how surfaces must be finished. For stainless steel frames supporting these belts, a surface roughness ($Ra$) of less than 0.8 μm is typically required to prevent bacterial adhesion.
Comparison of Modular Belt Materials
| Property | Polypropylene (PP) | Polyethylene (PE) | Acetal (POM) |
|---|---|---|---|
| Temp Range | +5°C to +105°C | -73°C to +66°C | -40°C to +90°C |
| Impact Strength | Moderate | High | Very High |
| Chemical Resistance | Excellent | Good | Moderate |
| FDA Compliance | Yes | Yes | Yes |
| Best Use Case | Wash-down / High Temp | Freezing / Impact | Heavy Load / Low Temp |
Critical Engineering Components for High-Care Lines
To achieve a truly high-care compliant system, the conveyor frame and drive components must match the belt's hygienic properties. This involves moving away from hollow tubes (which can harbor bacteria internally if seals fail) to open-profile C-channel or solid-bar stainless steel frames.
Sprocket and Shaft Design
Modern modular systems utilize square shafts to transmit torque. Unlike round shafts with keyways, square shafts are easier to clean and do not have "blind" spots where organic matter can accumulate. The sprockets themselves should be "split" for easy removal without dismantling the entire drive station, facilitating deep-cleaning cycles.
The Importance of Motor Selection
In high-care zones, the drive system is a potential contamination source. Traditional gearmotors with cooling fans can aerosolize bacteria. Engineers often prefer drum motors or hygienic stainless steel gearmotors with IP69K ratings. When integrating these components, working with an experienced partner like Easy Conveyors ensures that the drive geometry and belt tensioning systems are optimized for frequent high-pressure wash-downs.
Easy Conveyors stocks the modular systems discussed here — ready to ship across Europe.
Advanced Features: Antimicrobial and Detectable Plastics
Recent innovations have introduced "active" hygiene measures into modular belts.
- Metal-Detectable Plastics: In the event of a belt break, small fragments can be detected by standard X-ray or metal detection systems on the line, preventing contaminated products from reaching the market.
- Antimicrobial Additives: Some modules are infused with silver-ion technology that inhibits the growth of biofilm on the belt surface between cleaning shifts. However, these are supplements to, not replacements for, a robust Cleaning-in-Place (CIP) protocol.
Cleaning-in-Place (CIP) and Maintenance Protocols
Efficiency in high-care zones is often measured by the speed of the sanitation cycle. Modular belts allow for the integration of spray bars directly into the conveyor frame. A typical high-care CIP sequence involves:
- Dry Clean: Removing large debris.
- Pre-Rinse: Using 40-55°C water to melt fats.
- Detergent Application: Applying alkaline foam to break down proteins.
- Sanitization: Applying peracetic acid or chlorine-based sanitizers.
Proper maintenance of the drum motor selection and ensuring the VFD soft-start tuning is calibrated to avoid belt surging during startup are vital to extending the life of the plastic hinges. Over-tensioning is a common failure mode; modular belts should generally be run with a specific amount of "catenary sag" to allow the sprockets to engage the belt without excessive stress.
Troubleshooting Common Issues in High-Care Conveyors
Even with the best hygienic wash-down design, operational issues can arise. One frequent problem is "hinge fatigue," caused by using sprockets that are too small for the belt pitch, leading to excessive bending stress. Engineers should follow Habasit's or Intralox's guidelines for minimum sprocket diameters based on belt thickness and material.
Another concern is abrasive wear. In applications involving grit (such as vegetable processing), the plastic pins can wear down, leading to "belt stretch." Monitoring the catenary sag—the distance the belt hangs below the return rollers—is the most effective way to gauge wear. If the sag exceeds the manufacturer’s specification (usually 25-50mm), modules should be removed to shorten the belt, or the pins should be inspected for necking.
Future Trends: Sustainability and Digital Twins
As the industry moves toward Industry 4.0, modular conveyors are being integrated into digital twin environments. This allows for predictive maintenance, where sensors monitor the motor’s current draw to detect when a belt is beginning to bind or when a bearing is failing, long before a breakdown occurs in the middle of a high-care production run. Furthermore, the use of recyclable mono-materials in modular belts is helping manufacturers meet increasing ESG (Environmental, Social, and Governance) requirements without compromising hygiene standards.
Frequently Asked Questions
Which plastic material is best for high-pressure wash-down environments?
Polypropylene (PP) is generally preferred for its excellent chemical resistance to alkaline cleaners, while Polyethylene (PE) is superior for sub-zero temperatures in freezing lines.
Do modular plastic belts require high tensioning like fabric belts?
High-care modular belts should run with a 'catenary sag' (loose return side) rather than under high tension to reduce wear on the hinge pins and sprockets.
What IP rating is required for conveyor motors in high-care zones?
IP69K is the highest rating, indicating the component can withstand high-pressure water jets at temperatures up to 80°C, essential for high-care sanitation.
How do metal-detectable plastic belts improve food safety?
Metal-detectable plastic modules allow standard inspection equipment to identify and reject any belt fragments that might break off, preventing physical contamination.
