Advanced Safety: Integrating Safety PLCs and SIL Ratings on Conveyor Lines
Learn how Safety PLCs, light curtains, and SIL ratings (IEC 61508) protect personnel and optimize uptime in modern modular conveyor systems and automation.
Understanding Safety PLCs and SIL Ratings in Conveyor Automation
Safety Integrated Systems (SIS) in modern material handling represent the difference between a high-performance facility and a significant liability. A Safety PLC is a specialized controller designed specifically for safety-critical applications, built with redundancy and diagnostic capabilities to ensure that if a component fails, the system transitions to a predefined safe state.
Unlike standard PLCs, which focus on process logic and throughput, a safety PLC operates on the principle of "fail-safe" design. They are rated according to Safety Integrity Levels (SIL), as defined by the international standard IEC 61508. In the context of conveyor systems—where high speeds, heavy loads, and human-machine interaction are constant—SIL 2 or SIL 3 ratings are the industry benchmarks for risk reduction.
The Role of SIL and PL Ratings
When designing a conveyor line, engineers must navigate two primary standards: ISO 13849-1 (Performance Levels, or PL) and IEC 62061 (Safety Integrity Levels, or SIL). While they come from different standardized backgrounds, they share the goal of quantifying the reliability of a safety function.
| Feature | SIL (IEC 62061/61508) | PL (ISO 13849-1) | Application Context |
|---|---|---|---|
| Scale | 1 to 4 (4 being highest) | a to e (e being highest) | Industrial Automation |
| Typical Requirement | SIL 2 or 3 | PL d or e | High-speed Conveyors |
| Error Detection | Diagnostic Coverage (DC) | Diagnostic Coverage (DC) | Component level monitoring |
| Failure Probability | Probability of Failure per Hour (PFH) | Mean Time to Dangerous Failure (MTTFd) | Reliability Metrics |
| Redundancy | Built-in (1oo2, 2oo3) | Categories (B, 1, 2, 3, 4) | Hardware Architecture |
For most high-volume distribution centers or food processing plants, a SIL 3 / PL e rating is preferred for emergency stop (E-stop) circuits and light curtain integration to account for the highest possible risk of injury.
Light Curtains: The Invisible Barrier

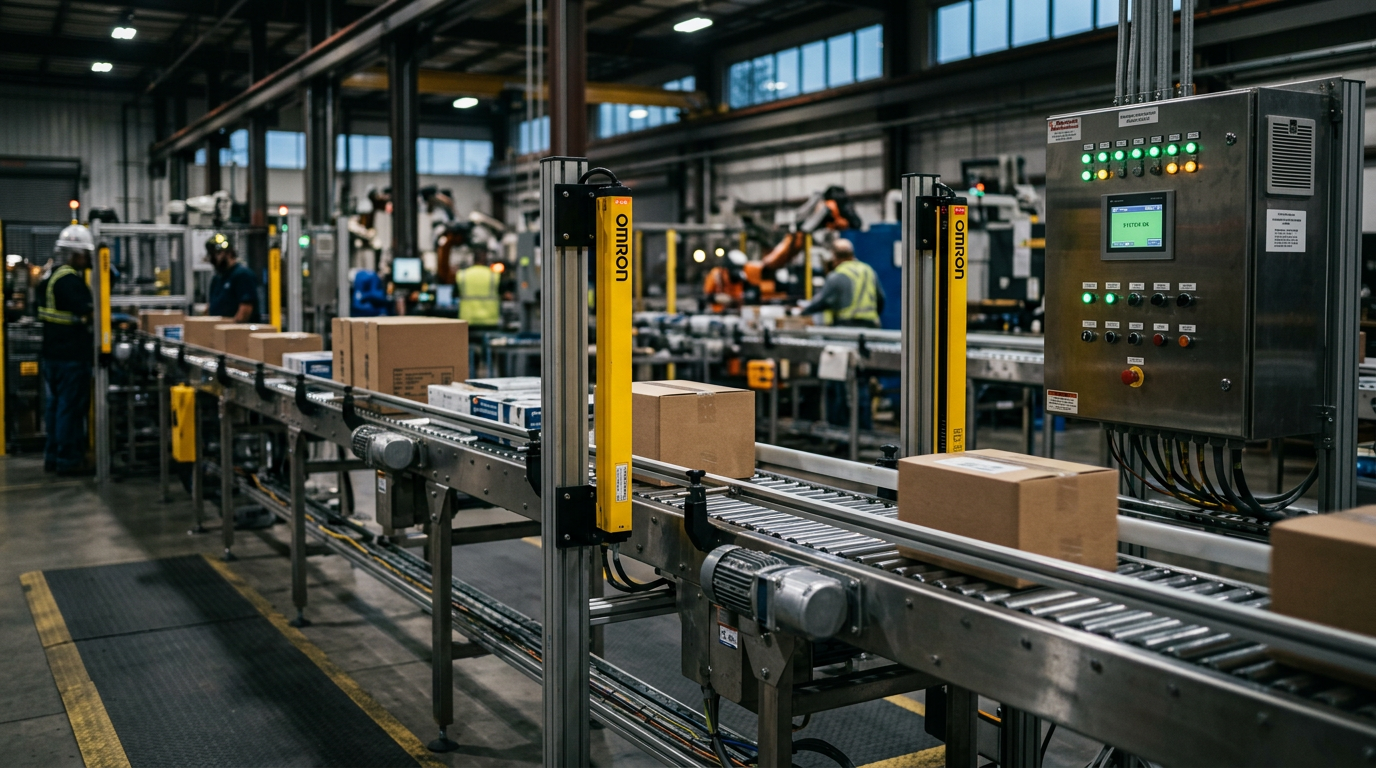

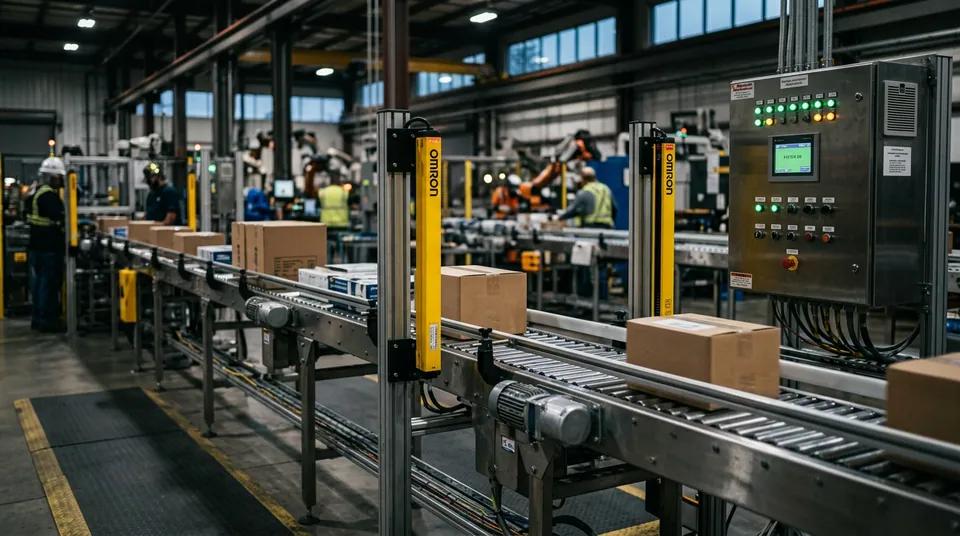

Light curtains are optoelectronic devices used to safeguard personnel in the vicinity of moving conveyor parts without the need for physical guarding. They consist of a transmitter and a receiver that create a grid of infrared light beams. When a beam is broken, the safety PLC receives a signal to immediately halt the conveyor motor.
Selection Criteria for Light Curtains
- Resolution: This refers to the distance between beams. A resolution of 14mm is typically required for finger detection, while 30mm is sufficient for hand detection.
- Protected Height: This must cover the entire access point to prevent "reaching over" or "crawling under" the sensing field.
- Muting and Blanking: In conveyor applications, "muting" is essential. This allows a pallet or package to pass through the light curtain without triggering a stop, while still recognizing a human worker. Muting sensors (typically proximity or photoelectric) signal to the safety PLC that a known object is approaching, temporarily bypassing the safety function.
When integrating these components, working with an experienced engineering partner like Easy Conveyors ensures that the mechanical structure of the modular system supports the precise mounting requirements needed for optical sensors to function without vibration interference.
Easy Conveyors stocks the industrial automation discussed here — ready to ship across Europe.
Integrating Safety PLCs with Conveyor Drives
The true power of a Safety PLC is realized when it communicates with Variable Frequency Drives (VFDs) via safety protocols like PROFIsafe or CIP Safety. This allows for "Safe Torque Off" (STO), a feature that ensures the motor cannot generate any torque while the safety circuit is open, even if the main power remains connected to the drive.
Advanced Safety Functions
Beyond simple stops, modern conveyor systems utilize:
- SLS (Safely Limited Speed): Allows the conveyor to run at a reduced, non-hazardous speed during maintenance or clearing jams.
- SDI (Safe Direction): Ensures the conveyor can only move in a direction away from the operator.
- SS1 (Safe Stop 1): Brings the motor to a controlled deceleration before removing power, which is critical for heavy decline conveyors to prevent "runaway" loads.
Properly implemented, these functions reduce the "Mean Time to Repair" (MTTR) because the entire system doesn't need a total power cycle to address a minor blockage. Check our guides on VFD soft-start tuning and drum motor selection for more on how drive technology impacts these safety cycles.
Redundancy and Diagnostic Coverage
A standard PLC might fail "high" (keeping a signal on), which would be catastrophic in a safety scenario. A Safety PLC uses redundant processors that cross-check each other. If one processor detects a discrepancy in the safety logic execution, the system enters a "Safe State" (usually a total shutdown).
This diagnostic coverage extends to the wiring. Safety systems often use "test pulses" on the 24V DC lines. These are micro-interruptions in power that are too short to affect the hardware but allow the PLC to detect short circuits or cross-talk between cables. If a wire is pinched in a modular conveyor frame, the safety PLC identifies the fault immediately, rather than waiting for an E-stop button to be pressed and fail.
Implementation Challenges in Modular Systems
Designing for modularity requires a distributed safety approach. Instead of one massive safety controller, engineers often use safety I/O modules distributed along the conveyor line. These modules connect back to the main safety PLC via a single Ethernet cable (using safety-rated protocols), reducing the massive wiring bundles typically associated with E-stops and light curtains.
Key considerations for modular safety:
- Zone Control: Breaking a 100-meter conveyor into zones so that an E-stop in "Zone A" doesn't necessarily halt "Zone D."
- Response Time: The total time from a light curtain being broken to the motor actually stopping. This includes PLC scan time, network latency, and drive braking time. This calculation determines the "Safety Distance"—how far away the light curtain must be mounted from the hazard.
- Environmental Factors: In food-grade environments, safety components must meet IP69K wash-down ratings. For more on this, see our section on hygienic wash-down design.
Safety Validation and Documentation
Installing the hardware is only half the battle. To comply with CE or OSHA requirements, the system must undergo a formal validation. This involves:
- Functional Testing: Deliberately triggering every safety device to ensure the logic reacts as designed.
- Software Validation: Ensuring the safety program is password-protected and that any changes are logged and verified.
- Safety Distance Calculation: Using the formula $S = (K \times T) + C$ (where $S$ is distance, $K$ is approach speed, $T$ is total stopping time, and $C$ is a constant based on resolution).
Failure to document these steps can lead to significant legal and operational risks, especially in complex multi-lane sortation systems common in e-commerce fulfillment. By following a rigorous SIL-rated design process, manufacturers protect their most valuable asset—their personnel—while maintaining the high uptime required in modern industry.
Frequently Asked Questions
What is the difference between SIL 2 and SIL 3 for conveyors?
SIL 3 (Safety Integrity Level 3) is a higher level of risk reduction than SIL 2, requiring higher diagnostic coverage and redundancy. In conveyor systems, SIL 3 is typically used for high-risk areas or where failure could lead to severe injury.
What is 'muting' in the context of conveyor light curtains?
Muting is the temporary, automatic suspension of a safety function (like a light curtain) during a non-hazardous portion of the machine cycle, such as a pallet moving through an entry point, verified by secondary 'muting' sensors.
Why is Safe Torque Off (STO) important for modular conveyors?
STO is a safety feature in VFDs that prevents the motor from restarting or generating torque. It is vital because it allows for a safe state without needing to disconnect the main power, enabling faster restarts after a safety event.
Can a Safety PLC also handle standard conveyor control tasks?
While safety PLCs are generally more expensive, they can be utilized for standard control logic as well. However, to maintain safety integrity, the safety logic must be strictly partitioned from the process logic within the software.
