Predictive Maintenance with Vibration Sensors on Conveyor Drives

Predictive maintenance with vibration sensors on conveyor drives reduces unplanned downtime by up to 50% by identifying bearing fatigue, shaft misalignment, and gear tooth wear before catastrophic failure occurs. By monitoring Root Mean Square (RMS) velocity and peak acceleration according to the ISO 20816-1 standard, maintenance teams can transition from reactive "run-to-fail" models to data-driven strategies that extend component life by 20-30%.

The Physics of Vibration in Conveyor Drives

Every rotating component in a conveyor drive system—the motor, the gearbox, and the drive pulley—generates a unique vibration signature or "heartbeat." When a drive is in peak condition, these vibrations are rhythmic and fall within low-amplitude thresholds. However, as mechanical degradation begins, the frequency and amplitude of these vibrations shift.

Vibration sensors, typically MEMS (Micro-Electro-Mechanical Systems) or piezoelectric accelerometers, capture these signals in three axes (X, Y, and Z). For conveyor systems, we primarily monitor three variables:

1. Displacement: Measured in mils or micrometers, useful for low-frequency issues like structural looseness.
2. Velocity: Measured in mm/s or in/s, the gold standard for detecting general machine health and unbalance.
3. Acceleration: Measured in g, critical for detecting high-frequency faults such as early-stage bearing race pitting.

In modern modular systems, such as those engineered by Easy Conveyors, integrating these sensors directly into the motor housing or gearbox mounting plate allows for real-time edge computing of FFT (Fast Fourier Transform) data.

Key Faults Detected by Vibration Analysis

Predictive maintenance isn't just about knowing that something is wrong; it's about knowing what is wrong. Vibration sensors allow for specific fault isolation:

Bearing Failure (The 4 Stages)

Bearings are the most common failure point in conveyor drives. Vibration analysis can detect "ultrasonic" spikes long before the human ear hears a squeal or the housing feels hot. According to research by SKF via Wikipedia, early detection of bearing defects can prevent collateral damage to the motor windings and gearbox shafts.

Misalignment and Unbalance

If a drive pulley is not perfectly aligned with the conveyor frame, it generates a distinct 2X RPM vibration frequency. Unbalance, perhaps caused by debris buildup on a drum motor or a bent shaft, manifests as a dominant 1X RPM frequency. Identifying these early prevents the premature destruction of seals and couplings.

Gearbox Mesh Issues

In worm or helical gearboxes, vibration sensors monitor the "gear mesh frequency." A chipped tooth or insufficient lubrication will show up as sideband frequencies around the primary gear mesh signal.

Metric	Normal Operation	Warning Threshold	Critical Action
Velocity (RMS)	< 2.8 mm/s	4.5 - 7.1 mm/s	Immediate Inspection
Peak Acceleration	< 0.5 g	1.0 - 1.5 g	Bearing Replacement
Temperature	< 60°C	> 85°C	Check Lubrication/Load
Frequency Range	Low/Stable	Emerging Sidebands	Gearbox Overhaul

Integrating Sensors into Automation Architectures

The shift from manual "walking the line" with a handheld probe to continuous monitoring is driven by the Industrial Internet of Things (IIoT). Modern vibration sensors are no longer just analog transducers; they are smart nodes.

1. Edge Processing: The sensor performs the FFT calculation locally, sending only the "health score" to the PLC (Programmable Logic Controller), which reduces network traffic.
2. IO-Link Integration: Most modular conveyor components now support IO-Link, a standardized point-to-point communication protocol. This allows the sensor to report vibration, temperature, and operating hours over a single standard cable.
3. Cloud Analytics: For large distribution centers, data is pushed to platforms like Siemens MindSphere or Rockwell Automation’s FactoryTalk. These platforms use machine learning to compare the current vibration profile against thousands of known failure patterns.

Strategic Placement: Where to Mount Sensors?

For maximum sensitivity, sensors must be mounted as close to the load zone as possible. On a standard conveyor drive, the primary locations include:

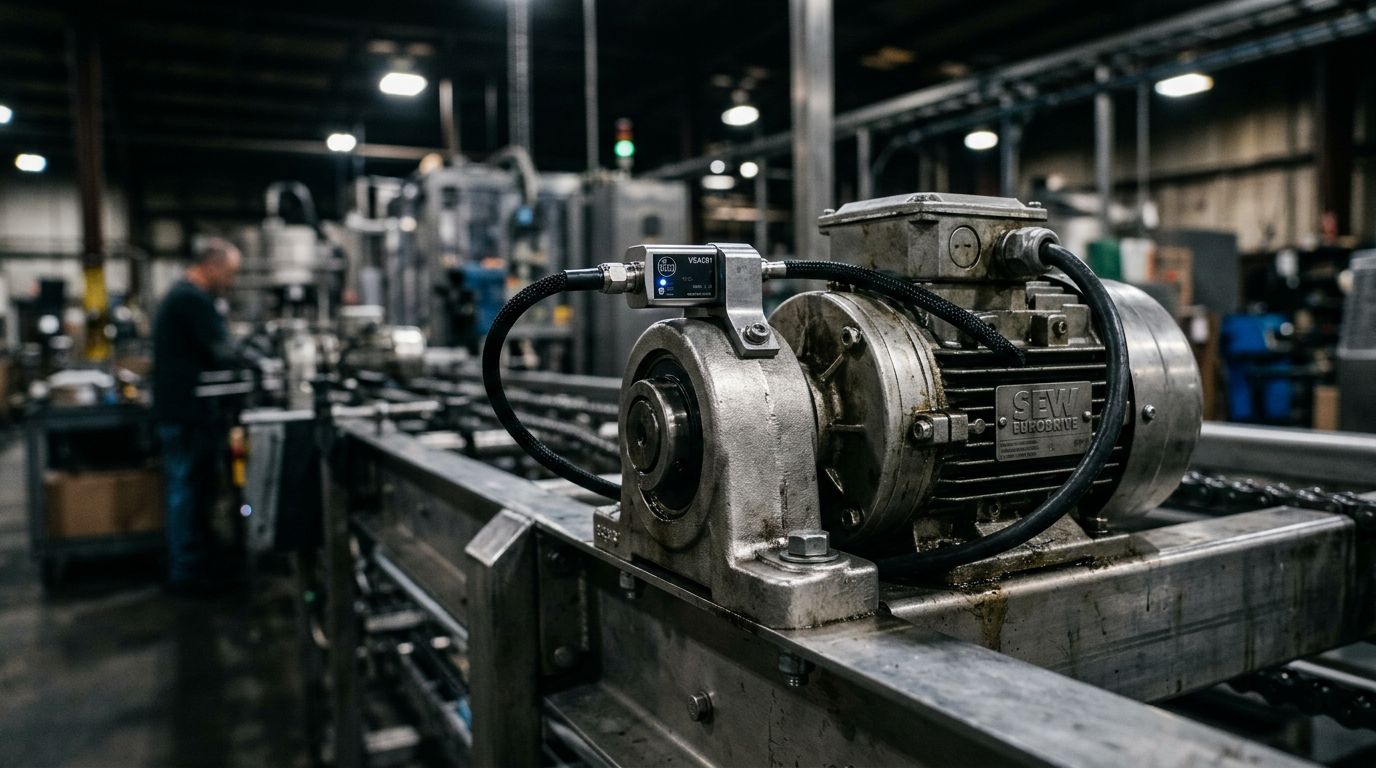

• The Motor Non-Drive End (NDE): To monitor cooling fan balance and rear bearing health.
• The Gearbox Output Housing: The most critical point for detecting high-torque stresses and output shaft bearing wear.
• The Drive Pulley Pillow Blocks: To monitor the interface between the drive system and the conveyor belt itself.

When selecting sensors, engineers must consider the environment. In food processing, sensors must meet IP69K wash-down ratings and potentially EHEDG guidelines for hygienic design. In logistics, a lower IP67 rating may suffice, focusing instead on wireless range and battery life for long-distance sorters.

The ROI of Predictive Vibration Monitoring

The cost of a vibration sensor and its integration is often less than the cost of one hour of downtime in a high-volume facility. By implementing predictive maintenance, plants can move toward "scheduled repair" windows. Instead of a conveyor failing at 2:00 AM on a Tuesday, the system alerts the team on Friday that a bearing is entering Stage 2 failure. The part is ordered, and the replacement is scheduled for the Sunday maintenance shift.

This approach also optimizes VFD soft-start tuning. By observing vibration levels during startup, engineers can adjust the acceleration ramps in the Variable Frequency Drive to minimize mechanical shock, further extending the life of the modular system.

Conclusion

Predictive maintenance with vibration sensors represents the pinnacle of conveyor drive management. By adhering to international standards like ISO 10816 for mechanical vibration evaluation, manufacturers can transform their conveyor systems from black boxes into transparent, predictable assets. Whether you are managing a small packaging line or a massive e-commerce fulfillment center, the data provided by these tiny sensors is the key to operational excellence.

For those looking to upgrade their current infrastructure, collaborating with specialists in modular design, such as Easy Conveyors, ensures that sensors are integrated into the system's DNA rather than being a mere afterthought. This proactive stance is what separates industry leaders from those constantly fighting the next "unforeseen" breakdown.
