ESD-Safe Conveyor Automation for Electronics Assembly: Engineering Guide
Learn how to design ESD-safe conveyor systems for electronics assembly, focusing on dissipative materials, grounding strategies, and IEC 61340-5-1 compliance.

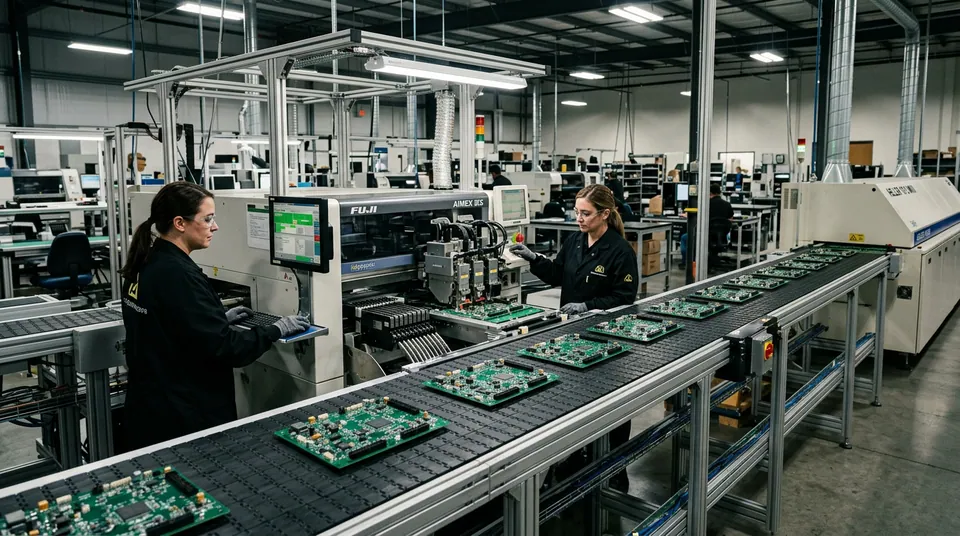

Effective ESD-safe conveyor automation for electronics assembly requires a surface resistance between 10^4 and 10^9 ohms per square to prevent rapid electrostatic discharge that can destroy sensitive semiconductors. In modern PCB (Printed Circuit Board) and SMT (Surface Mount Technology) lines, achieving this involves the integration of dissipative materials, continuous grounding paths through the conveyor frame, and humidity-controlled environments to mitigate charge generation.
The Critical Role of ESD Control in Automation
Electrostatic discharge (ESD) is the invisible enemy of the electronics manufacturing industry. As semiconductor nodes shrink, the voltage threshold at which components suffer "gate rupture" or "latent defects" continues to drop. Standard industrial conveyors often utilize high-insulation materials like standard PVC belts or Delrin (POM) chains, which can generate thousands of volts of static electricity through the triboelectric effect during movement.
In a fully automated electronics assembly line, the conveyor is not just a transport mechanism; it is part of the Electrical Overstress (EOS) protection scheme. Systems must comply with IEC 61340-5-1 or ANSI/ESD S20.20, which dictate the requirements for an ESD Protected Area (EPA). Without specialized "conductive" or "dissipative" components, the conveyor acts as a giant Van de Graaff generator, endangering every microprocessor it touches.
Technical Specifications of ESD-Safe Materials
To ensure safety, conveyor components are classified based on their surface resistivity. While "conductive" materials allow charge to flow too quickly (potentially causing sparks), "dissipative" materials provide a controlled path to ground.
| Material Property | Resistance Range (Ohms) | Application in Conveyors |
|---|---|---|
| Conductive | < 1.0 x 10^4 | Grounding clips, metal rollers, conductive carbon fibers. |
| Dissipative | 1.0 x 10^4 to < 1.0 x 10^11 | Conveyor belts, plastic modular chains, side guides. |
| Insulative | ≥ 1.0 x 10^11 | Standard industrial plastics (Avoid in EPA). |
Modular Chains and Belting
In modular systems, manufacturers inject carbon-black or specialized additives into base polymers like Polyacetal (POM). These additives create a microscopic conductive network within the plastic. When selecting a modular chain, engineers must verify that the dissipative properties are "permanent" and not just a surface coating that will wear off over time. For high-speed SMT lines, using specialized modules from partners like Easy Conveyors ensures that the system maintains a consistent resistance profile across the entire length of the assembly cell.
Mechanical Grounding Strategies
An ESD-safe belt is useless if the charge has nowhere to go. The conveyor frame itself must serve as a low-resistance path to the facility’s common point ground.
- Conductive Wear Strips: The interface between the belt and the frame must be conductive. Using standard UHMW-PE wear strips can isolate the belt, trapping static. ESD-grade UHMW or stainless steel tracks are required.
- Brushes and Ionizers: In areas with high friction or peeling (such as protective film removal), passive dissipative brushes or active DC ionizers are mounted above the belt to neutralize surface charges before the PCB reaches a sensitive robotic pick-and-place station.
- Bearing Continuity: Standard grease in bearings can act as an insulator. For critical automation, "grounding brushes" are often installed on the drive shafts to bypass the bearing lubricant and ensure a direct electrical path to the grounded frame.
Easy Conveyors stocks the industrial automation discussed here — ready to ship across Europe.
Integration with Robotic Cells
In "lights-out" electronics assembly, the conveyor must interface with robotic arms. This introduces two specific challenges: precision and potential difference.
Precision and Indexing
Automation requires high repeatability. While ESD-safe materials are necessary, they must also maintain dimensional stability. Some carbon-filled plastics can be more brittle or have different thermal expansion coefficients than their standard counterparts. Engineers should consult VDI standards for modular conveyors to ensure that the chosen ESD material doesn't compromise the indexing accuracy required for vision-guided robotics.
Grounding the Robot-Conveyor Interface
When a robotic gripper touches a PCB on a conveyor, both must be at the same electrical potential. If the conveyor is floating at 100V and the robot is at 0V, a discharge will occur through the component. This is why "Common Point Grounding" is mandatory. All conveyor segments, motor housings, and robot bases must be bonded to the same copper busbar.
Maintaining the ESD Environment
Unlike mechanical wear, ESD protection degradation is invisible. A belt may look perfectly functional while its dissipative properties have failed due to chemical cleaning or environmental aging.
Impact of Humidity
The ESD Association emphasizes that relative humidity (RH) significantly affects surface resistance. If the factory floor drops below 30% RH, the effectiveness of dissipative materials decreases. Automated systems often include integrated RH sensors that trigger an alarm if the environment becomes too dry, increasing the risk of static buildup.
Cleaning and Contamination
Dust and oils are typically insulative. In a "hygienic wash-down design" context, cleaning agents can leave a residue that creates an insulative barrier on an ESD-safe belt. Regular testing with a surface resistance meter (megohmmeter) is the only way to validate that the conveyor remains within the 10^4 to 10^9 ohm range.
Failure Modes in ESD-Safe Automation
Engineering teams should watch for these common failure points during the commissioning and lifecycle of the system:
- Insulative Lubrication: Using standard silicone-based sprays on an ESD belt can instantly turn a dissipative surface into an insulative one.
- Grounding Path Interruption: Replacing a section of a stainless steel frame with a painted bracket can break the continuity to the ground.
- Wear of Dissipative Additives: In lower-quality modular chains, the conductive carbon can migrate or wear away, leaving patches of insulative plastic that generate "hot spots" of static charge.
For engineers looking to optimize their material handling, understanding the nuances of "VFD soft-start tuning" is also vital, as sudden accelerations can increase triboelectric charging at the drive sprocket interface. Proper tuning of acceleration ramps reduces the mechanical friction that contributes to charge generation. Additionally, selecting the right motor—such as an "IE3 efficiency class" (IEC 60034-30-1) motor—ensures that the drive system runs cool, as excess heat can also alter the electrical properties of dissipative conveyor chains.
Conclusion
Designing for ESD-safe electronics assembly is a holistic discipline. It requires the right choice of dissipative polymers, a robust mechanical grounding strategy, and constant monitoring. By treating the conveyor as a functional electrical component rather than just a mechanical transport, manufacturers can significantly reduce scrap rates and ensure the long-term reliability of their automated electronics production lines.
Frequently Asked Questions
Why use dissipative instead of conductive materials for ESD conveyors?
Dissipative materials (10^4 to 10^9 ohms) are preferred because they allow static to bleed off at a controlled rate, whereas conductive materials (< 10^4 ohms) can cause rapid, damaging sparks if a charged component touches them.
How do you test the ESD safety of a conveyor belt?
Surface resistance should be measured using a calibrated megohmmeter with 2.27 kg (5 lb) electrodes, following the procedures outlined in IEC 61340-2-3.
Can standard modular plastic chains be used in an electronics plant?
Yes, standard POM (Delrin) is a highly insulative material that generates significant static. ESD-safe versions use carbon-black or other conductive fillers to reduce surface resistance.
How often should ESD-safe conveyors be audited?
At a minimum, verify the ground path monthly. For high-volume SMT lines, daily surface resistance spot-checks and continuous monitoring of humidity are recommended.
Does humidity affect the performance of an ESD-safe conveyor?
Low humidity (under 30%) significantly increases the risk of static buildup as it reduces the natural conductive moisture layer on surfaces, making ESD-safe materials less effective.
