Optimizing pharmaceutical track-and-trace conveyor line layouts requires a minimum buffering capacity of 1.5x the labeler throughput to prevent micro-stops from triggering serialization mismatches. By integrating precision modular conveyors with vision-inspection stabilization zones, manufacturers can ensure 99.9% read rates for Data Matrix codes while maintaining compliance with EU FMD 2011/62/EU and the US Drug Supply Chain Security Act (DSCSA).
The Architecture of Serialization: Beyond Simple Transport
In the pharmaceutical sector, a conveyor is no longer just a means of moving product from point A to point B; it is a critical component of the data integrity chain. A "track-and-trace" layout refers to the physical arrangement of equipment designed to print, verify, and aggregate unique identifiers on individual units (cartons, vials, or bottles).
To achieve high-speed serialization (often exceeding 300 units per minute), the layout must address mechanical stability. Vibrations or inconsistent spacing can lead to "no-reads" or "false rejects," which are costly in a high-value environment. A standard layout usually follows a modular progression: Infeed -> Stabilization -> Marking/Coding -> Verification -> Reject Station -> Outfeed.
Layout Configuration Strategies
1. The Linear "In-Line" Layout
This is the most common configuration for high-speed carton lines. It prioritizes a straight path to minimize centrifugal forces that could shift product orientation.
- Best for: Standard folding cartons and flat-bottomed containers.
- Critical Spec: Must include a side-belt transfer or "grip conveyor" if the bottom of the packaging requires coding.
- Belt Selection: Anti-static POM (Polyoxymethylene) modular belts are preferred to prevent ESD interference with sensitive vision sensors (IEC 61340-5-1).
2. The U-Shape and Space-Constrained Layouts
When floor space is limited, engineers often resort to 90-degree or 180-degree turns. However, turns introduce the risk of "shingling"—where cartons overlap.
- Design Rule: Use active transfer plates or small-radius rollers to maintain the gap between products.
- Partnering for Precision: Implementing specialized modules from Easy Conveyors allows for the integration of standard aluminum or stainless steel frames that can be easily reconfigured as production needs evolve.
| Feature | Linear Layout | U-Shape Layout | Vertical Buffering |
|---|---|---|---|
| Speed Potential | Very High (>400 ppm) | Medium (up to 200 ppm) | Medium |
| Footprint | Large (Lengthwise) | Compact | Very Compact |
| Data Integrity | Highest (Simplest tracking) | High (Requires encoder sync) | Complex (FIFO logic needed) |
| Typical Use Case | Primary Packaging | Secondary Packaging | Multi-level cleanrooms |
| Vibration Level | Low | Moderate (at turns) | Moderate |
Mechanical Stability and Vision Integration

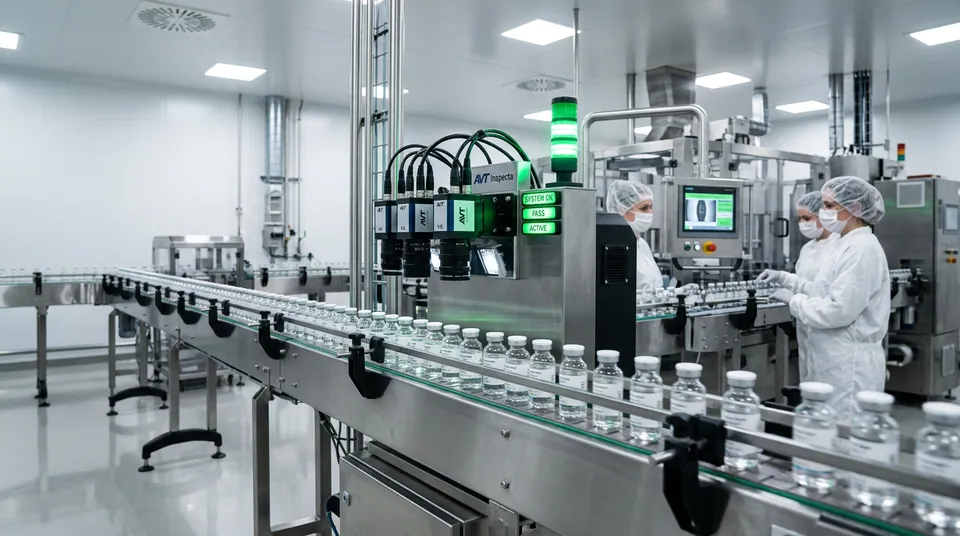

The heart of any track-and-trace layout is the vision inspection zone. For a camera to capture a 2D Data Matrix code, the product must be perfectly centered and stable.
Stabilization Zones
A stabilization zone is typically a 500mm to 1000mm section of the conveyor where the belt runs on high-precision machined wear strips. If the belt "surges" due to poor tensioning or low-quality motor control, the image will blur. Using IE3 efficiency class motors with high-resolution encoders ensures the conveyor speed is perfectly synchronized with the camera trigger.
Reject Stations: The "Failsafe" Requirement
In pharmaceutical automation, the reject station is a legal requirement. The layout must provide enough "run-out" distance between the verification camera and the reject bin to allow the pneumatic pusher or air blast to activate.
- Failsafe Logic: The system should be "Normally Reject." If power is lost or a sensor fails, the default state should be to divert the product out of the compliant stream.
- Verification of Reject: A "reject verification" sensor must be placed in the reject bin to confirm the non-compliant item actually left the belt.
Easy Conveyors stocks the industrial automation discussed here — ready to ship across Europe.
Sizing and Buffer Management
One of the most common failures in pharmaceutical layouts is "back-pressure." If the downstream case packer pauses, the track-and-trace line must not immediately stop, as the sudden jerk can ruin a print-in-progress.
- Accumulation Tables: Use low-friction modular belts (acetal) to allow products to slide without damage.
- VFD Soft-Start Tuning: To prevent product tipping, VFD soft-start tuning (Variable Frequency Drive) should be set with a gentle S-curve acceleration profile.
- Sensor Density: High-density photoelectric sensors (retro-reflective or through-beam) should be placed every 300mm in accumulation zones to provide granular data to the PLC.
Hygiene and Cleanroom Standards
Most track-and-trace lines operate in Grade C or D cleanroom environments. This dictates the material choice and mechanical design:
- Materials: 304 or 316L Stainless Steel frames.
- Surface Finish: Smooth, non-porous surfaces to prevent microbial growth, adhering to EHEDG guidelines.
- Access: The conveyor must be designed for "wash-down" or "wipe-down," meaning motors should be IP66 or IP69K rated if aggressive cleaning agents are used.
Future-Proofing with Modular Components
As regulations like the DSCSA evolve toward full aggregation (linking unit-level IDs to case-level IDs), conveyor layouts must be flexible. A modular approach allows for the insertion of "spacer modules" or "checkweigher modules" without rebuilding the entire line. This modularity is essential for maintaining a high OEE (Overall Equipment Effectiveness) while meeting the rigorous demands of pharmaceutical safety standards.
By focusing on vibration dampening, precise product spacing, and fail-safe reject mechanisms, plant engineers can build track-and-trace layouts that are not only compliant but also optimized for maximum throughput. (Citations: NEMA IP Ratings, IEC 60034-30-1, FDA DSCSA Guidelines).
Integration with Automation Hubs
Modern layouts often utilize decentralized control. Instead of one large PLC cabinet, small I/O blocks are mounted directly to the conveyor frame. This reduces wiring complexity and makes the "track-and-trace" module a "plug-and-play" asset in the larger packaging line. Monitoring the "health" of these motors via IO-Link can provide predictive maintenance data, signaling when a belt is stretching or a motor is overheating before a failure occurs.
Frequently Asked Questions
What is a stabilization zone in pharmaceutical conveyors?
A stabilization zone is a precision-engineered section of the conveyor (usually 500-1000mm) designed to eliminate belt surge and vibration, ensuring a sharp image for 2D code verification.
Which belt material is best for pharmaceutical serialization?
For primary packaging, low-friction POM (acetal) or anti-static modular belts are preferred. For wash-down environments, IP69K-rated stainless steel conveyors are required.
Why is 'Normally-Reject' logic used in track-and-trace?
Normally-Reject logic ensures that if the system fails (power loss, sensor error), the product is automatically diverted to the reject bin, preventing unverified drugs from reaching the market.
How much buffering is needed for a serialization line?
Maintain a buffer of approximately 1.5 times the maximum throughput of the slowest machine (usually the labeler or case packer) to absorb micro-stops without stopping the serialization process.
