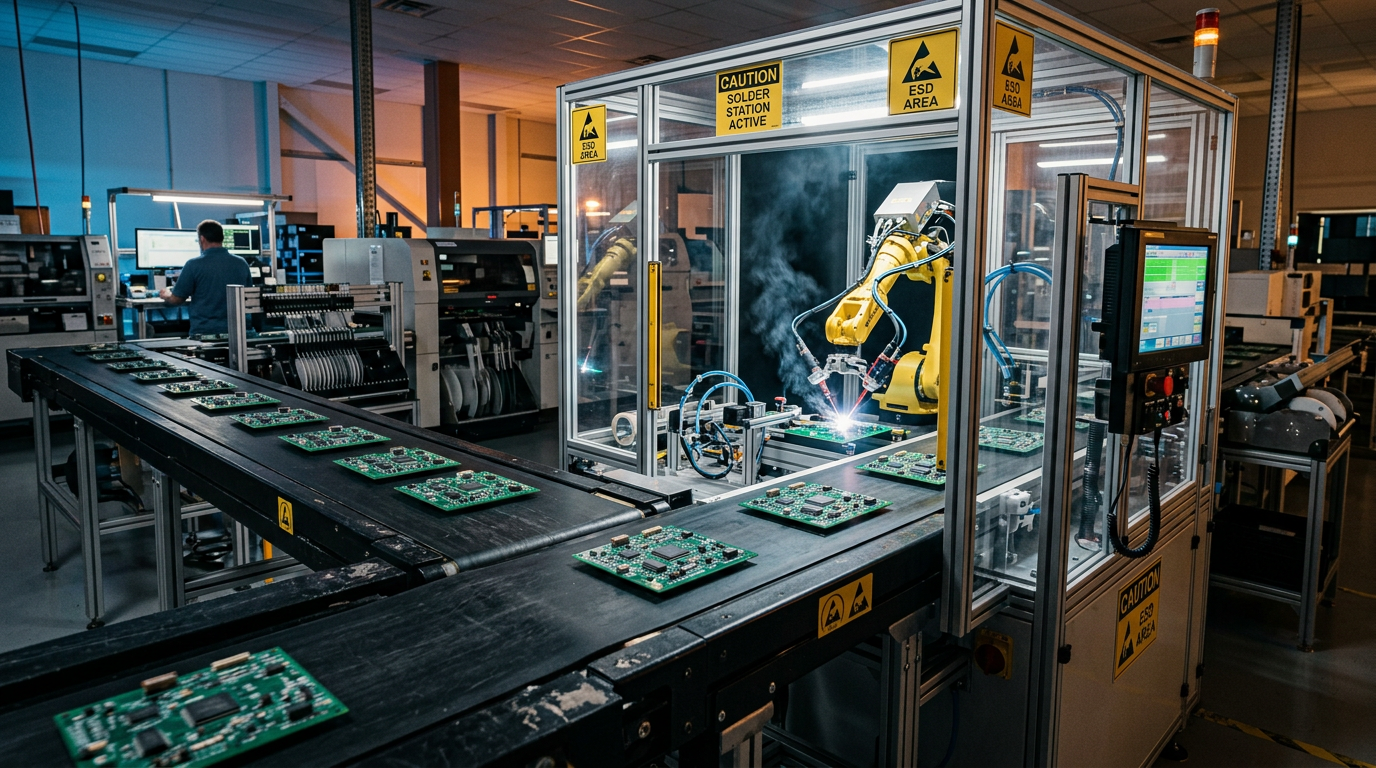

ESD-Safe Conveyor Automation for Electronics Assembly: A Technical Guide

In modern electronics manufacturing, Electrostatic Discharge (ESD) is a silent killer of yield, responsible for up to 33% of product losses in PCBA assembly lines. ESD-safe conveyor automation ensures that surface resistance remains strictly between 10^4 and 10^9 ohms, preventing rapid voltage spikes that can puncture semi-conductor gate oxides. By integrating conductive materials and systematic grounding throughout the transport path, manufacturers move from simple transport to active component protection.

Understanding the Physics of ESD in Conveyor Systems

In an automated environment, electrostatic charges are primarily generated through tribocharging—the contact and separation of two materials. As a PCB or electronic assembly moves along a conveyor, the friction between the belt (or pallet) and the transport medium creates a potential difference. Without a path to ground, this charge accumulates until it finds a lower potential, often resulting in a catastrophic discharge through a sensitive component.

To mitigate this, the entire conveyor architecture must be treated as a unified grounding circuit. This involves more than just "using black plastic." Engineers must distinguish between conductive materials (<10^5 Ω) and dissipative materials (10^5 to 10^11 Ω). For electronics assembly, the dissipative range is preferred because it allows charges to bleed off controlledly rather than instantaneously, which itself can cause electromagnetic interference (EMI).

Standards and Compliance

Most global electronics manufacturers adhere to ANSI/ESD S20.20 or IEC 61340-5-1. These standards dictate that any surface coming into contact with ESD-sensitive (ESDS) items must have a point-to-point resistance and resistance-to-ground within specified limits. In an automated cell, this includes the conveyor belt, the wear strips, the side guides, and even the lubricants used in the bearings.

Critical Hardware Components for ESD-Safe Lines

Building an ESD-safe automation line requires a "bottom-up" approach to component selection. Every interface is a potential point of failure for the grounding path.

1. Dissipative Belts and Chains

Standard PVC or modular plastic belts are excellent insulators, meaning they hold onto charge. ESD-safe belts are typically impregnated with carbon black or specialized conductive additives.

• Modular Chains: Often made of acetal (POM) with conductive fillers.
• Flat Belts: Feature a conductive carbon layer embedded in the carcass to ensure the top surface can bleed charge through to the pulleys and frame.

2. Conductive Wear Strips and Side Guides

The friction point between the chain and the conveyor frame is a major source of tribocharging. Using standard UHMW-PE wear strips can isolate the belt from the grounded frame. For electronics assembly, specialized PE-UHMW "black" antistatic wear strips must be used to maintain the electrical path from the belt to the aluminum or stainless steel structure.

3. Grounding Brushes and Ionization

In high-speed applications, even ESD-safe materials may not bleed charge fast enough. In these cases, active measures are required:

• Carbon Fiber Brushes: Positioned to touch the belt surface, providing a direct mechanical path to ground.
• Ionizing Bars: Mounted above the conveyor to neutralize static charges on non-conductive components (like plastic housings) through the emission of positive and negative ions.

Comparison: Standard vs. ESD-Safe Conveyor Specifications

Feature	Standard Modular Conveyor	ESD-Safe Modular Conveyor
Material Resistance	> 10^12 Ω (Insulative)	10^4 to 10^9 Ω (Dissipative/Conductive)
Belt Material	Standard Acetal / PP	Carbon-filled POM or Dissipative PU
Wear Strip Type	Virgin UHMW-PE (White)	Conductive UHMW-PE (Black)
Grounding Requirement	Frame grounding for safety	Full-path grounding for ESD control
Typical Application	General packaging / Food	PCBA / Semiconductor / Sensors
Maintenance	Standard Cleaning	Resistance Verification (Periodic)

Integrating Automation: Sensors and Control

In an automated electronics line, the conveyor is rarely just a straight path. It involves stops, transfers, and lifts. Each of these movements introduces a risk of charge generation.

Soft-Start and VFD Tuning

Sudden starts and stops increase friction and, consequently, tribocharging. Utilizing a VFD soft-start tuning approach allows for smooth acceleration profiles, reducing the mechanical stress and the rate of charge accumulation. This is particularly vital when transporting unhoused PCBAs that are highly susceptible to vibration-induced friction.

Sensor Selection

Standard capacitive sensors can sometimes be triggered by static build-up or can interfere with sensitive electronic loads. Inductive sensors are generally preferred for pallet detection in ESD environments, provided they are housed in metal bodies that are properly grounded to the conveyor profile.

The Role of Modular Systems in Scalable Electronics Packaging

Flexibility is a core requirement for electronics manufacturers who may cycle through product designs every six months. Modular systems allow for rapid reconfiguration. When selecting a partner for these complex layouts, Easy Conveyors provides the European engineering expertise necessary to ensure that modular components maintain electrical continuity across junctions, corners, and vertical transfers.

Design Trade-offs: Conductivity vs. Durability

One common challenge in ESD-safe design is that the additives used to make plastics conductive (like carbon black) can sometimes make the material more brittle or prone to "sloughing"—the shedding of conductive particles.

• Particle Contamination: In cleanroom environments (ISO Class 5 or 6), sloughing is a major concern. Engineers must choose "non-sloughing" dissipative materials that use inherently dissipative polymers (IDP) rather than carbon coatings.
• Wear Life: Conductive acetal chains may have a slightly lower load capacity or different thermal expansion coefficients than their standard counterparts. Designing for "hygienic wash-down design" is less common in electronics, but "clean-room compatibility" takes its place, requiring specific lubrication-free components to prevent outgassing.

Measuring and Validating the ESD Path

Validation is the final, and most critical, step. An ESD-safe conveyor is only effective if it is verified under load.

1. Point-to-Point Resistance (Rpp): Measuring the resistance between two points on the belt surface.
2. Resistance to Ground (Rtg): Measuring from the belt surface to the factory’s central grounding point.

Regular audits using a megohmmeter (typically at 10V or 100V) are necessary because wear and environmental contaminants (like oil or dust) can increase surface resistance over time, turning a dissipative conveyor back into an insulative hazard.

Future Trends: Industry 4.0 and Smart ESD Monitoring

As we move toward "Lights Out" manufacturing, manual ESD audits are becoming a bottleneck. The next generation of conveyor automation includes real-time static monitoring. Sensors mounted along the track continuously measure the voltage potential of passing products. If a pallet exceeds a threshold (e.g., >100V), the system can automatically divert the part to an inspection station or trigger an ionizing air shower to neutralize the charge before it reaches a sensitive assembly robot.

Integrating these smart sensors into the drum motor selection and control logic ensures that the conveyor is not just a passive transport tool, but an active participant in quality assurance and yield optimization. Growing demand for electric vehicle (EV) battery assembly and 5G infrastructure components will only sharpen the industry's focus on these specialized material handling systems.
