Drum Motor vs Gearmotor: The Ultimate Selection Guide for Conveyor Drives

For conveyor drive selection, the primary technical trade-off lies between the 95% space-saving efficiency of a drum motor and the maintenance accessibility of a traditional gearmotor, with drum motors offering up to IP69K protection ratings for washdown environments. While gearmotors remain the industry standard for high-torque applications exceeding 50 kW, drum motors are the preferred choice for food-grade modular systems where reducing the drive footprint and eliminating external lubrication risks are paramount.

The Engineering Logic of Drive Selection

Selecting the motive force for a belt conveyor is no longer a simple choice of horsepower. In modern automation, the decision between a drum motor (internal drive) and a gearmotor (external drive) dictates the system's hygiene profile, energy consumption, and total cost of ownership (TCO). A drum motor houses the motor, gearbox, and all bearings inside a sealed cylindrical shell, which itself acts as the drive pulley. Conversely, a gearmotor assembly consists of an external motor coupled to a gearbox, which then drives the pulley via a shaft, chain, or coupling.

Drum Motors: The Integrated Solution

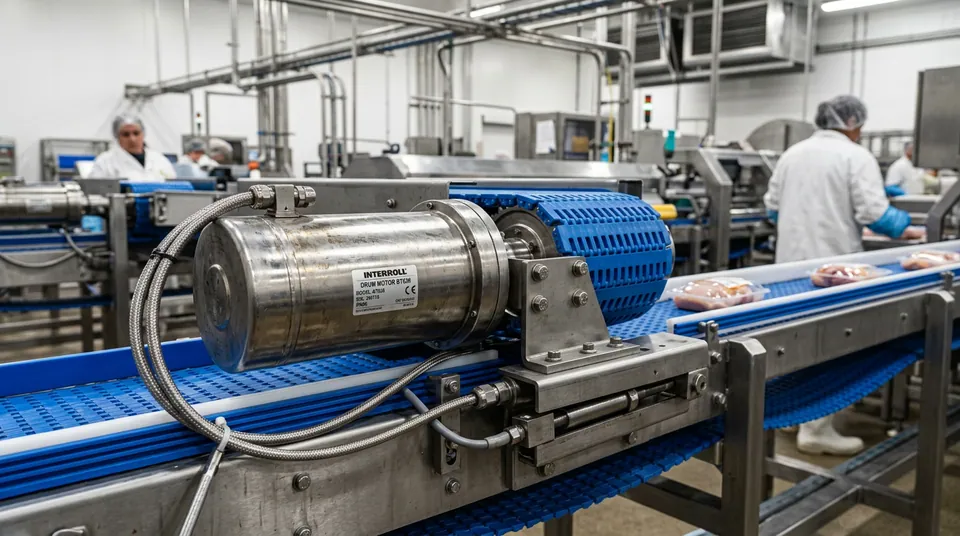

Drum motors are engineered for compactness and cleanliness. Because the entire drive mechanism is hermetically sealed within the steel shell, there are no external moving parts, zero risk of oil leakage onto the product, and a significant reduction in noise levels (often below 60 dB).

Technical Advantages of Drum Motors

1. High Ingress Protection: Most high-end drum motors meet IP69K standards, making them resistant to high-pressure, high-temperature washdown procedures common in meat and dairy processing.
2. Space Efficiency: By eliminating the side-mounted motor and gearbox, engineers can design narrower conveyor frames, allowing for higher density in warehouse sortation centers.
3. Hygienic Design: Following EHEDG guidelines, the smooth cylindrical surface minimizes bacteria harbor points compared to the cooling fins of an external motor.

Easy Conveyors specializes in modular conveyor systems that leverage these integrated drives to provide sleek, low-profile designs that are easier to integrate into existing production lines.

Gearmotors: The Versatile Workhorse

Traditional gearmotors, whether helical, bevel, or worm-geared, remain the dominant force in heavy industrial material handling. Their primary advantage is modularity and ease of service.

Technical Advantages of Gearmotors

1. Thermal Dissipation: Because the motor is exposed to ambient air, it dissipates heat more effectively than a drum motor, which relies on the conveyor belt to act as a heat sink.
2. Maintenance Access: If a stator fails or a seal leaks, the motor can be swapped in minutes without breaking the conveyor belt tension or removing the drive pulley.
3. High Power Range: For heavy-duty applications like mining or automotive chassis transport, gearmotors can easily reach IE3 or IE4 efficiency classes at power ratings exceeding 200 kW, far beyond the typical 30 kW limit of most drum motors.

Comparison Table: Drum Motor vs. Gearmotor

Feature	Drum Motor (Internal)	Gearmotor (External)
Efficiency Class	IE2 - IE3	IE3 - IE5
Ingress Protection	Up to IP69K	Typically IP55 - IP66
Installation Volume	Ultra-compact (Width of belt)	Large (Requires lateral clearance)
Cooling Method	Conduction through belt/oil	Ambient air (Convection/Fan)
Maintenance	Low (Internal oil change)	Moderate (External lubrication)
Typical Power	0.1 kW to 30 kW	0.1 kW to 500 kW+

Key Selection Criteria for Engineers

1. Environmental Conditions and Hygiene

In the food and pharmaceutical sectors, the drive must withstand aggressive chemicals. Drum motors are the gold standard here. According to FDA 21 CFR, food contact surfaces must be reachable for cleaning or be sealed. A drum motor eliminates the "dead zones" behind a gearmotor where debris typically accumulates.

2. Duty Cycle and Thermal Management

A critical failure mode for drum motors is overheating during "stalled" conditions or when running at very low frequencies without a VFD-rated internal fan. If your application involves high-frequency start-stop cycles (S3 duty), ensure the drum motor is oil-cooled or utilize a gearmotor where the cooling fan operates independently of the drive speed.

3. Energy Efficiency and Standards

Modern regulations, such as IEC 60034-30-1, mandate higher efficiency classes for electric motors. Gearmotors often have the edge in pure energy conversion efficiency because they can utilize larger, more efficient copper windings and high-precision ground gears that aren't constrained by the diameter of a pulley shell. However, the energy lost in external chain drives or couplings often negates this advantage, making the "system efficiency" of a drum motor comparable.

Integration Considerations

When designing a system, consider the "VFD soft-start tuning" requirements. Drum motors have higher internal inertia relative to the belt load compared to external gearmotors. This requires precise parameterization of the variable frequency drive to prevent belt slippage during acceleration.

Furthermore, for "hygienic wash-down design", the choice of lubricant is paramount. Both drive types should utilize H1 food-grade synthetic oils if they are positioned above the product flow, though the hermetic seal of the drum motor provides a secondary layer of protection that external gearboxes lack.

Conclusion: Which should you choose?

Select a drum motor if your priority is hygiene, operator safety (no nip points), or space-constrained layouts. They are the premium choice for secondary packaging and food processing.

Select a gearmotor for heavy-duty applications, high-temperature environments, or where 24/7 uptime requires the ability to perform rapid, external component swaps without dismantling the conveyor frame. Evaluating the total cost of ownership—including cleaning time, energy, and spare parts—will usually point to the drum motor as the superior long-term investment for light-to-medium duty modular conveyors.
